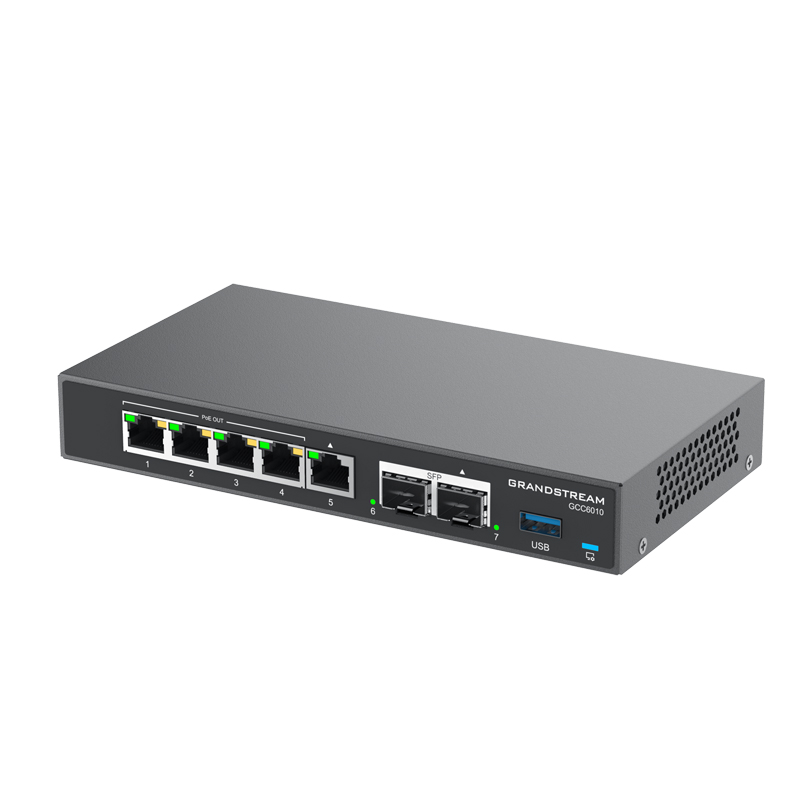

Grandstream GCC6010 All-In-One Router with Enterprise Grade Firewall VPN and PBX. The GCC6000 Series provides an extraordinary all-in-one solution that merges unified communications and networking solutions into one platform. These state-of-the-art devices combine the functionality of 4 products to provide an all-in-one solution that includes a VPN router, next-generation firewall, IP PBX, and network switch or Wi-Fi access point.
Try the GCC in action now using the new interactive Demo Tool!
Try the GCC in action now using the new interactive Demo Tool!
Features
- Built-in IP PBX provides voice & video communications with advanced collaboration features (PBX Upgrade options available)
- Built-in firewall provides anti-virus, layer 3-7 IDS/IPS, DPI, SSL detection, and more
- Built-in VPN router supports 2.5Gbps or 3Gbps to allow easy remote access
- Built-in network switch with 5 or 10 Gigabit ports, 4x PoE out ports, and 2x 2.5 SFP ports (GCC6010/GCC6011)
- Easily configure, deploy, and manage all Grandstream endpoints from one interface
- Provides advanced security protection with encrypted traffic, secure boot, unique security certificates, and more
- Managed through the cloud (GDMS), mobile app, local WEB UI, SSH, and SNMP
- Multiple WAN ports with load balancing and failover to maximize connection reliability
| Details | |
|---|---|
| Product Code | GCC6010 |
| Network Ports | 2 x 2.5 Gigabit SFP ports and 5 x Gigabit Ethernet ports *All ports are WAN/LAN configurable, max 3x WAN |
| Auxiliary Ports | 1 x Micro-SD, 1 x USB 3.0, 1 x Reset |
| Memory | 2GB RAM, 32GB eMMC Flash |
| External Storage | N/A |
| Router | 2.5Gbps |
| IPsec VPN Throughput | 1Gbps |
| NAT Sessions | 160K |
| IDS/IPS | 900Mbps |
| PBX | 12 users and 4 concurrent calls by default; Upgrades available for purchase (See more for PBX capacity upgrade options) |
| PoE Output | 4 x PoE out ports, IEEE802.3af/at, Maximum PoE Wattage: 36W |
| Mounting | Desktop and Wall-mountable |
| Case Material | Metal |
| LEDs | 7x single LEDs , 4x PoE LEDs, and 1x RGB LED for device tracking and status indication |
| Connection Type | DHCP, Static IP, PPPoE |
| Network Protocols | IPv4, IPv6, IEEE802.1q ,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab |
| QoS | VLAN, TOS, Support multiple traffic classes, filter by port, IP address, DSCP, and policing, App QoS: Application/protocol monitoring and traffic statistics, VoIP Prioritization Firewall, DDNS, Port Forwarding, DMZ, UPnP, DoS & Spoofing defense, traffic rules, NAT, DPI, Anti-Virus, IPS/IDS, SSL Proxy, Content Control: DNS filtering, web url/class/key words filtering, application identification and control |
| VPN | IPsec VPN Client-to-Site / Site-to-Site • IPSec Encryption: 3DES, AES • IPSec Authentication: MD5, SHA-1, SHA2-256 • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14 • IPSec Protocols: ESP • IPSec NAT Traversal • PPTP VPN Server / Client • PPTP Encrpytion: MPPE 40-bit, 128-bit • PPTP/L2TP Authentication: MS-CHAPv1/2 • L2TP Client-to-Site • OpenVPN Server / Client • OpenVPN Encryption: AES, DES • OpenVPN Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512 • OpenVPN Certificate: RSA • WireGuard |
| Network Management | Grandstream Device Management System (GDMS), Local Web GUI, SSH, and SNMP (v1/ v2c/v3)) |
| Max AP/Clients | Up to 150 GWN APs; Up to 500 Clients |
| Power and Green Energy Efficiency | Universal power adaptor included: Input 100-240VAC 50-60Hz, Output: 48VDC 1A (48W); 4 x PoE out ports, IEEE802.3af/at, Maximum PoE Wattage: 36W |
| Environmental | Operation: 0°C to 45°C, Storage: -30°C to 60°C, Humidity: 5% to 95% Non-condensing |
| Physical | Unit Dimension: 191x 101 x 29mm Unit Weight: 520g Entire Package Dimension: 300 x 130 x 53 mm Entire Package Weight: 835g |
| Compliance | FCC, CE, RCM, IC |
| Details | |
|---|---|
| Package Content | GCC6010, Universal Power Supply, Wall mount kit |
GDMS/GWN Cloud
1Gbps
RJ45 , SFP , USB
POE (802.3af)
