Supported Platforms
Description
Specifications
Resources
Package Contents

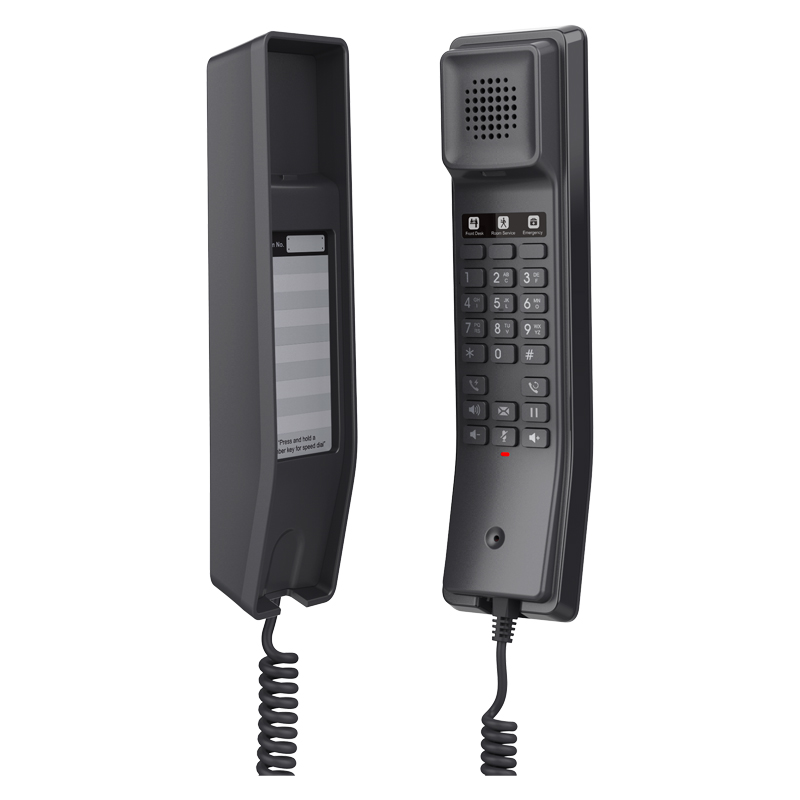

The Grandstream GHP611W is a compact SIP IP phone that provides an HD speaker on the handset, 2 SIP accounts/lines, 10 speed dial keys and 3 programmable keys. Part of the GHP Series of Hotel Phones, these simple IP phones are also ideal for hospitals, apartments, dormitories, retail and more. This Series includes 2 models with integrated dual-band Wi-Fi support (GHP610W and GHP611W), provides 3-way voice conferencing, supports full-band OPUS voice codec and features an advanced jitter-resilience algorithm that tolerates up to 30% packet loss without impacting voice quality. The GHP Series is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Thanks to a compact design that can be easily used on a desktop or wall-mounted, the GHP611W are ideal for hotel deployments as well as many other similar environments.
Features
- 2 SIP accounts, 2 lines
- GDMS online device management and provisioning
- 3-way audio conferencing for easy conference calls
- Includes one 100Mbps network port with PoE
- Speed dial label and swappable faceplate to allow for easy customization
- Hearing Aid Compatibility (HAC)
- Enterprise-level protection including secure boot, dual firmware images and encrypted data storage
- Integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac
| Details | |
|---|---|
| Product Code | GHP611W |
| Protocols/Standards | SIP: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP; Network: IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, LLDP, TR-069, 802.1x |
| Wi-Fi | GHP611W integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac |
| Feature Keys | 23 keys, including 3 programmable keys, 12 Standard Phone Digits keys (0-9: speed dial keys configuration on web page, *, #), 5 Function keys (Flash, Redial, Hands-free, Voice Mail, Hold), 3 Volume Control keys, Up/Down/Mute(with red color LED) |
| HD Audio | One HD handset support for wide band audio |
| Voice Conferencing | 2 SIP accounts and lines, up to 3-way conference |
| Voice Codecs and Capabilities | Support for G.729A/B, G.711μ/a-law, G.726, G.722 (wide-band), G.723, iLBC, and full band OPUS. In- band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB. |
| Telephony Features | Dial, Answer, Transfer, Conference, Redial, Flash ,Hands-free, Voice Mail (with the server) Hold / Unhold, Mute /Unmute, flexible dial plan, Speed dial server redundancy & fail-over Call out. |
| Advanced Features | Support for multicast paging and E911 service, Support for advanced jitter-resilience algorithm, Supports GDS Door Opening |
| Wall Installation | 1 Wall Mountable Base |
| QoS | Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | Secure boot, random default password, unique security certificate per device, administrator level passwords, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control |
| Upgrade/Provisioning | Firmware upgrade via FTP/TFTP / HTTP / HTTPS, fast boot in 15 seconds, mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file |
| Power & Green Energy Efficiency | Universal power adapter GHP611W: Input: 100~240Vac 50~60Hz Output: 12V/0.5A(6W) |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% (Non-condensing) |
| Package Content | GHP61X phone, handset with cord, base, universal power supply (GHP610W & GHP611W), Quick Installation Guide |
| Color | Black |
| Details |
|---|
GDMS/GWN Cloud
100Mbps
2.4GHz , 5GHz
DC 12V
