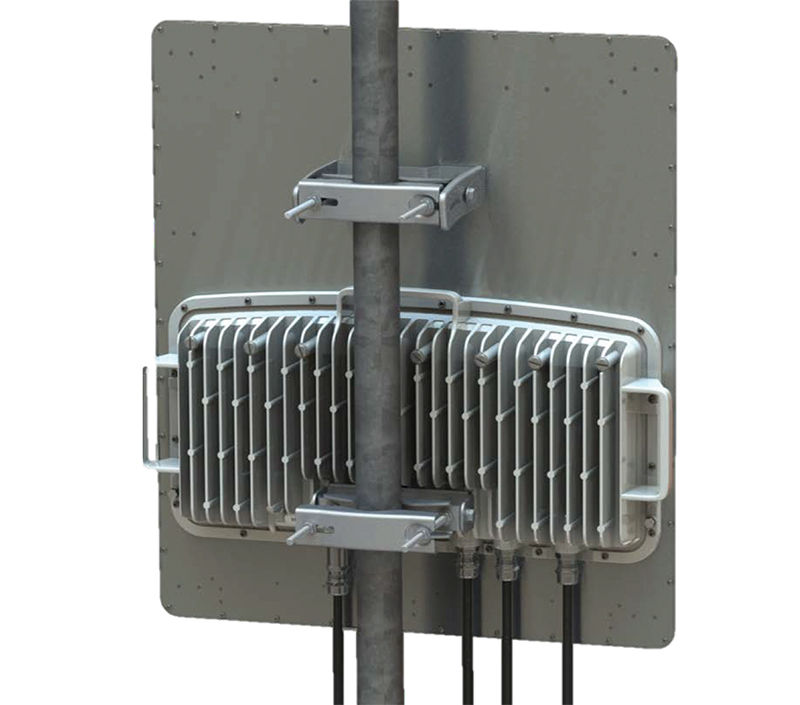

Cambium cnMedusa 3 GHz PMP 450m Integrated Access Point, C030045A101C.
The Cambium PMP450m Access Point is the most scalable, highest capacity, and most spectrally efficient AP in the industry. cnMedusa is a first-of-its-kind technology in a fixed wireless broadband access platform. The 450m utilizes massive Multi-User MIMO technology in a cost-effective solution. The implementation of MU-MIMO coupled with beamforming technology delivers ground-breaking spectral efficiency and outstanding performance in high interference environments.
cnMedusa™ technology enhances sector capacity by combining a smart beamforming antenna array with multiple RF transmit and receive chains, effectively multiplying available capacity by more than three times.
Protect your investment in the 450 platform equipment by continuing to utilize existing Subscriber Modules (all 450 platform subscribers work with the 450m and cnMedusa technology, including prior generation 430 modules).
SFP port allows for greater deployment flexibility, and AUX port allows for connection of camera or other PoE directly.
The Cambium PMP450m Access Point is the most scalable, highest capacity, and most spectrally efficient AP in the industry. cnMedusa is a first-of-its-kind technology in a fixed wireless broadband access platform. The 450m utilizes massive Multi-User MIMO technology in a cost-effective solution. The implementation of MU-MIMO coupled with beamforming technology delivers ground-breaking spectral efficiency and outstanding performance in high interference environments.
cnMedusa™ technology enhances sector capacity by combining a smart beamforming antenna array with multiple RF transmit and receive chains, effectively multiplying available capacity by more than three times.
Protect your investment in the 450 platform equipment by continuing to utilize existing Subscriber Modules (all 450 platform subscribers work with the 450m and cnMedusa technology, including prior generation 430 modules).
SFP port allows for greater deployment flexibility, and AUX port allows for connection of camera or other PoE directly.
Features
- Throughput of over 450 Mbps in a 20 MHz channel; More than 800 Mbps in a 40 MHz channel
- MU-MIMO with spectral efficiency of more than 50 bps/Hz
- Features smart beamforming to reduce interference
- Protects your investment in the 450 platform equipment by continuing to utilize existing Subscriber Modules (450 and 450i platform subscribers work with the 450m and cnMedusa technology)
- SFP port allows for greater deployment flexibility, and AUX port allows for connection of camera or other PoE directly
| Details | |
|---|---|
| Product Code | C030045A101C |
| Channel Spacing | Customizable channel selection to 50 KHz raster |
| Frequency Range | 3300 - 4200 MHz |
| Channel Width | 5, 10, 15, 20, 30 and 40 MHz |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 8 x 8 Multi-User MIMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant), SFP support for 1 Gbps optical |
| Protocols Used | IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License for attached Access Point) |
| Subscribers Per Sector | Up to 238 |
| Ultimate Sensitivity | -94 dBm |
| Maximum Deployment Range | Up to 64 km (40 miles) |
| Latency | 10 ms, typical |
| GPS Synchronization | Yes, via Autosync (CMM5 or UGPS) |
| Quality of Service | Diffserve QoS |
| Beam width - Azimuth | 90° integrated sector (dual polarity, H+V, 3dB rolloff), 120° (6dB rolloff) |
| Beam width - Elevation | 2° Electrical Downtilt, 8° Elevation Beamwidth and Null Fill down to -30° |
| Maximum EIRP | +52 dBm (or up to maximum allowed by regulation) - achieved by combining 16 dBi Antenna Gain and +36 dBm Max Tx Power |
| Antenna Connection | Integrated Sector Array |
| Mean Time Between Failure | > 40 years |
| Environmental | IP67, IP66 |
| Temperature / Humidity | -40°C to 60°C (-40°F to 140°F), 100% non-condensing |
| Weight | Without Mounting Brackets: 20.4 kg (45 lbs), With Mounting Brackets: 22.6 kg (49.8 lbs) |
| Wind Survival | 200 kph (124 mph) |
| Wind Loading - Front Facing | @144 kph / 90 mph: 613 N, @177 kph / 110 mph: 927 N, @200 kph / 124 mph: 1183 N |
| Dimensions (Diameter x Depth) | 69 x 61 x 17.5 cm (27.2 x 24 x 7 in) |
| Power Consumption | 140 W typical, 150 W peak (up to 180 W max with AUX port PoE enabled) |
| Input Voltage | 40 - 60 VDC |
| Mounting | Pole mount with included brackets (1.25 in to 4 in pole diameter) |
| Details |
|---|
cnMaestro
Proprietary
RJ45 , SFP
3GHz
