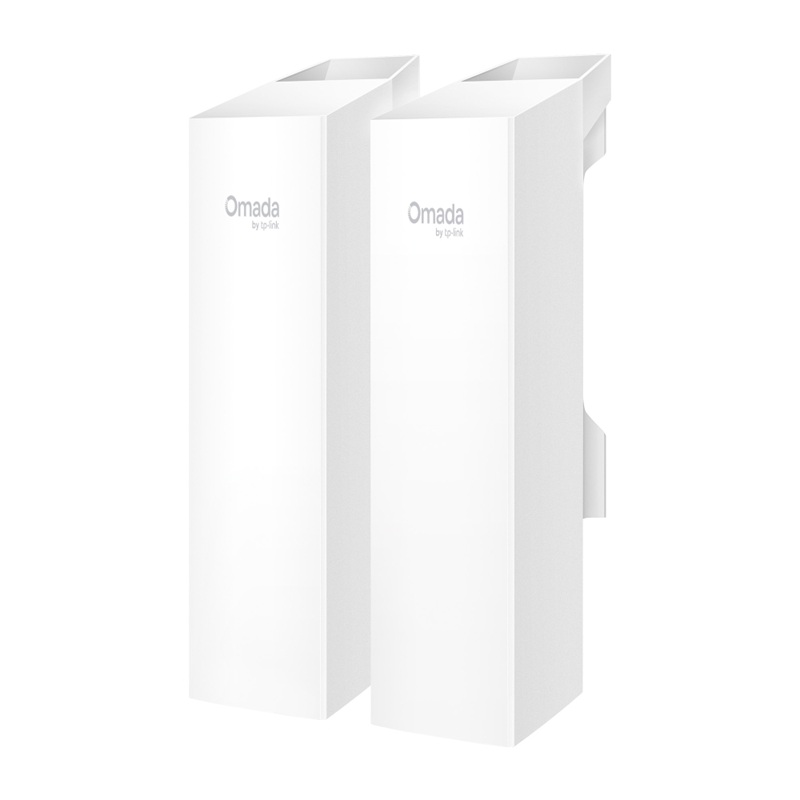

Omada EAP100-Bridge-Kit 2.4Ghz Pre-Configured Bridge Kit, 300Mbps Indoor/Outdoor Wireless Bridge recommended for up to 500m point to point.
NOTE: This kit doesn't include PoE Injectors

Features

Ideal for long-range wireless transmission up to 500 m
Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever
Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments
App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification
Flexible Power Supply: 802.3af PoE, 24V Passive PoE supported
3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch.
Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40°C to 70°C
Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app

Details
Manufacturer's Code	EAP100-Bridge-Kit
Interface	3x 10/100 Mbps Ethernet Ports
Button	Reset
Power Supply	12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE supported
Max. Power Consumption	4.8 W
Dimensions ( W x D x H )	79 × 60 × 224 mm
Antenna Gain	2.4 GHz: 8.0 dBi
Antenna Beamwidth	Horizontal:70°, Vertical: 70°
Weatherproof Enclosure	IP65
Mounting	Pole and wall mounting (Pole accessories included)
Transmission Power	20dBm (2.4 GHz, EIRP)
Centralized Management	Omada Hardware Controller, Omada Software Controller, Omada App
Certification	CE, FCC, RoHS
Operating Temperature	-40 °C–70 °C
Storage Temperature	-40 °C–70 °C
Operating Humidity	10%–90% non-condensing
Storage Humidity	5%–90% non-condensing
