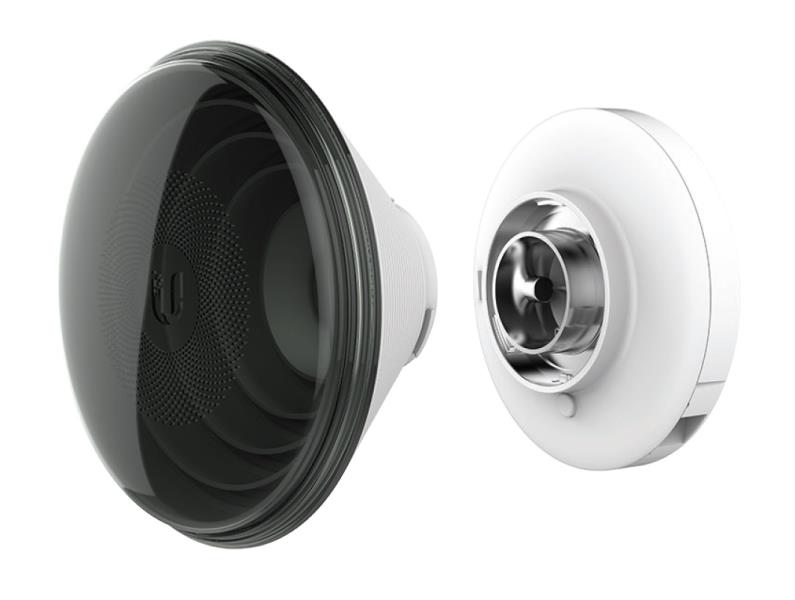

Ubiquiti IS-M5 IsoStation 5GHz airMAX 250mW 802.11a/n with 45 deg 14dBi interchangeable Isolation Antenna included, with Metal shielded radio base station, Ubiquiti Networks has launched the latest generation of airMAX Base Station with dedicated Wi-Fi management, the IsoStation™ M5.
Features
- Interchangeable horn antennas for enhanced beam shaping.
- Horn feed comes directly from the radio input/output so connectors are eliminated.
- Single button release for ease of changing antennas.
- All metal, shielded radio base.
- Metal trap for quick pole-mounting.
- Works with NSM5, LOCOM5 and NBE-M5-16
| Details | |
|---|---|
| Manufacturer's Code | IS-M5 |
| Chipset | Atheros MIPS 74Kc, 560 MHz |
| Output Power | 24dBm |
| Operating Modes | AP/Station/WDS |
| Frequency Range | 5150 - 5875 MHz |
| Interfaces | (1) 10/100/1000 Ethernet Port |
| Wireless standards | 802.11a/n |
| Temperature Range | -40 to 70° C |
| PoE In | Yes, 24V |
| Operating System | Ubiquiti airOS VI |
| Antenna gain dBi | 14dBi |
| Max Power consumption | 6.5W |
| Number of chains | 2 |
| Beamwidth | 45° (Default Horn) |
| Wind Loading | 36 N @ 200 km/h (8.09 lbf @ 125 mph) |
| Pole Diameter | 30-50mm |
| Dimensions | With Horn: 174 x 174 x 150 mm, Without Horn: 131 x 131 x 65 mm |
| IP Rating | IP54 |
| Details | |
|---|---|
| Power Supply | 3 Pin Clover Lead |
| Power Injector | 24V POE Injector |
| Pole Mount | Yes, Hose Clamp or Cable Tie |
| Antenna | 45 deg 14dBi interchangeable Isolation Antenna included |
5GHz
Wi-Fi 4 , Proprietary
1Gbps
Waveguide
PoE (non standard)
