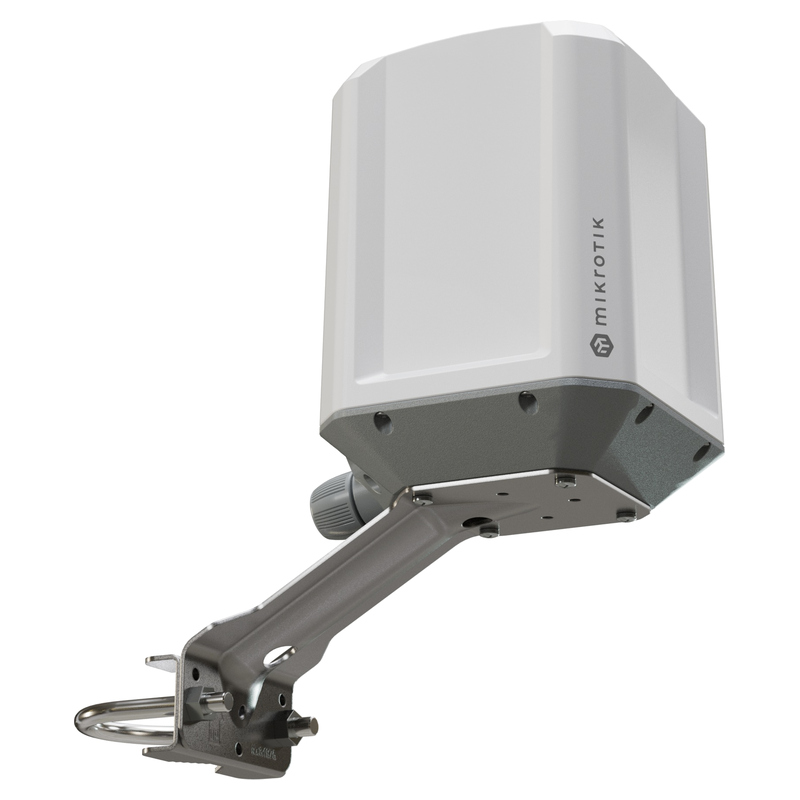

The MikroTik LAMP 5G R16 (LAMPGM&RG520F-EU) is a rugged outdoor 5G device that uses omnidirectional antennas and built-in eSIM support to automatically connect to the best available tower – no antenna alignment or physical SIM swaps required. IP67, maritime durability, GNSS, PoE-in.
Not every location has a clear line to a single base station. In cities, ports, industrial sites, and busy transport hubs, there may be several towers within reach – and network conditions can change throughout the day.
The MikroTik LAMP 5G R16 takes a different approach. Instead of locking onto a single direction, its omnidirectional antenna system can connect to the best available network around it, helping maintain reliable service even when conditions change. A tower goes offline? Network conditions change? A better signal becomes available? LAMP 5G R16 can adapt without requiring antenna realignment.
eSIM & MikroTik Connectivity – get online faster and easier than ever!
Deploy devices without handling physical SIM cards. LAMP 5G R16 features a built-in eSIM, allowing operators to activate data plans remotely and bring new installations online in minutes. It is fully compatible with MikroTik Connectivity – our simple pre-activated data service that helps you get connected quickly, whether you're deploying a single device or managing a large network.
Need even more flexibility? LAMP 5G R16 also supports third-party eSIM providers and multiple eSIM profiles. Store different operator plans on a single device and switch between them as your connectivity requirements change. Whether you're managing backup connections, roaming deployments, or multi-operator networks, LAMP gives you more options without needing to swap physical SIM cards. Built for the outdoors… and even the sea! Rain, dust, heat, cold, or salty sea air – LAMP 5G R16 is ready for it. Designed to meet the EN 60945 maritime standard, together with its IP67-rated enclosure and stainless-steel mounting bracket, it is a reliable choice for demanding outdoor and marine deployments. Whether deployed at ports, marinas, coastal infrastructure, or aboard vessels, the device is designed to meet the environmental and electromagnetic requirements expected in marine communication environments. Built-in GNSS support provides access to GPS, Galileo, BeiDou, and QZSS satellite systems. This enables accurate positioning information for fleet management, asset tracking, remote infrastructure, and location-aware* applications.
Not every location has a clear line to a single base station. In cities, ports, industrial sites, and busy transport hubs, there may be several towers within reach – and network conditions can change throughout the day.
The MikroTik LAMP 5G R16 takes a different approach. Instead of locking onto a single direction, its omnidirectional antenna system can connect to the best available network around it, helping maintain reliable service even when conditions change. A tower goes offline? Network conditions change? A better signal becomes available? LAMP 5G R16 can adapt without requiring antenna realignment.
eSIM & MikroTik Connectivity – get online faster and easier than ever!
Deploy devices without handling physical SIM cards. LAMP 5G R16 features a built-in eSIM, allowing operators to activate data plans remotely and bring new installations online in minutes. It is fully compatible with MikroTik Connectivity – our simple pre-activated data service that helps you get connected quickly, whether you're deploying a single device or managing a large network.
Need even more flexibility? LAMP 5G R16 also supports third-party eSIM providers and multiple eSIM profiles. Store different operator plans on a single device and switch between them as your connectivity requirements change. Whether you're managing backup connections, roaming deployments, or multi-operator networks, LAMP gives you more options without needing to swap physical SIM cards. Built for the outdoors… and even the sea! Rain, dust, heat, cold, or salty sea air – LAMP 5G R16 is ready for it. Designed to meet the EN 60945 maritime standard, together with its IP67-rated enclosure and stainless-steel mounting bracket, it is a reliable choice for demanding outdoor and marine deployments. Whether deployed at ports, marinas, coastal infrastructure, or aboard vessels, the device is designed to meet the environmental and electromagnetic requirements expected in marine communication environments. Built-in GNSS support provides access to GPS, Galileo, BeiDou, and QZSS satellite systems. This enables accurate positioning information for fleet management, asset tracking, remote infrastructure, and location-aware* applications.
Features
- Weatherproof
- GNSS (intended for positioning, tracking, and non-critical location-aware applications. This device is not designed or certified for navigation, route guidance, or safety-critical marine navigation)
- EN 60945 maritime compliant
- A modern 5G SA/NSA modem
- Cutting-edge omnidirectional antennas
- eSIM & MikroTik Connectivity
- Gigabit Ethernet + PoE-in
| Details | |
|---|---|
| Product code | LAMPGM&RG520F-EU |
| CPU | Dual-core 88F3720 800 MHz |
| CPU Architecture | ARM 64-bit |
| RAM | 512 MB DDR3L |
| Storage | 32 MB Flash |
| SIM Slots | 1 microSIM, eSIM |
| GNSS Standard | GPS, Glonass, Galileo, BeiDou, QZSS |
| GNSS Interface Model | RG520F-EU |
| LTE Modem | R11mL-RG520F-EU |
| TAC | 86945405 |
| 5G SA Category | DL: 4.2 Gbps; UL: 900 Mbps |
| MIMO DL | 4x4 |
| MIMO UL | 2x2 |
| 5G SA FDD Bands | 1 (2100MHz); 3 (1800MHz); 5 (850MHz); 7 (2600MHz); 8 (900MHz); 20 (800MHz); 28 (700MHz) |
| 5G SA TDD Bands | 38 (2600MHz); 40 (2300MHz); 41 (2500MHz); 75 (1500MHz); 76 (1500MHz); 77 (3700MHz); 78 (3500MHz) |
| 5G NSA Category | DL: 5.0 Gbps; UL: 650 Mbps |
| 5G NSA FDD Bands | 1 (2100MHz); 3 (1800MHz); 5 (850MHz); 7 (2600MHz); 8 (900MHz); 20 (800MHz); 28 (700MHz) |
| 5G NSA TDD Bands | 38 (2600MHz); 40 (2300MHz); 41 (2500MHz); 75 (1500MHz); 76 (1500MHz); 77 (3700MHz); 78 (3500MHz) |
| LTE Category | 20 (2.0 Gbps Downlink, 200 Mbps Uplink) |
| LTE FDD Bands | 1 (2100MHz); 3 (1800MHz); 5 (850MHz); 7 (2600MHz); 8 (900MHz); 20 (800MHz); 28 (700MHz); 32 (1500MHz) |
| LTE TDD Bands | 38 (2600MHz); 40 (2300MHz); 41 (2500MHz); 42 (3500MHz); 43 (3700MHz) |
| 3G Category | R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G Bands | 1 (2100MHz); 5 (850MHz); 8 (900MHz) |
| Dimensions With Mount | 276 × 267 × 133 mm |
| IP Rating | IP67 |
| Operating System | RouterOS v7, License level 3 |
| Operating Temperature | -40°C to +70°C |
| DC Input | PoE-In |
| Input Voltage | 12-56 V |
| Power Adapter Nominal Voltage | 24 V |
| Power Adapter Nominal Current | 0.5 A |
| PoE-In | 802.3af/at |
| Max Power Consumption | 10 W |
| Details | |
|---|---|
| Power Supply | 24V 1.2A DC Power adaptor and RBGPOE Injector included |
| Mounting Hardware | LAMP Mount included |
5G , GPS/GNSS
RJ45
600-999MHz , 1700-2100MHz , 2.4GHz , 3GHz , 5GHz
PoE (non standard) , PoE (802.3af/at)
