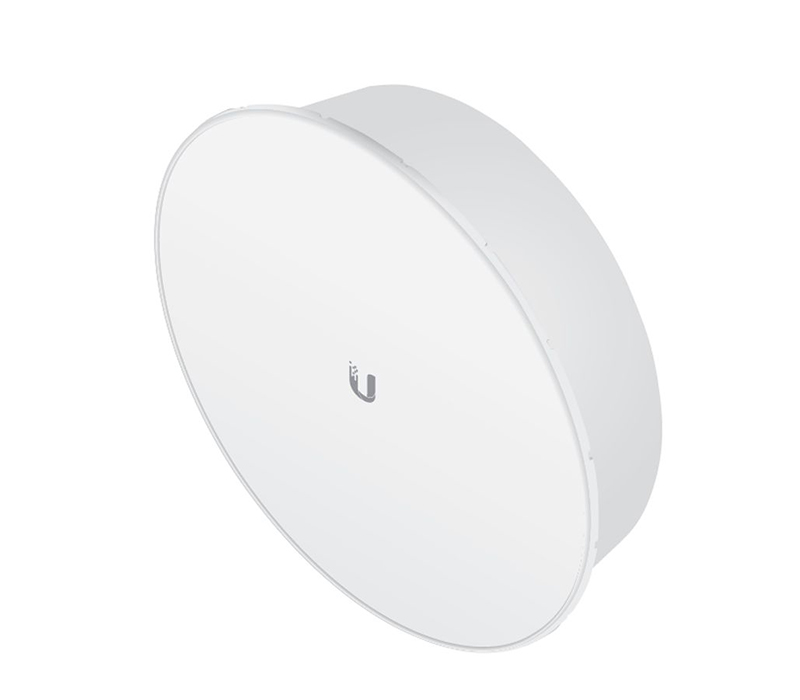

Ubiquiti airMax 5 GHz PowerBeam AC Gen2 with RF Isolator Shielding

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Description

Specifications

Resources

Package Contents

Ubiquiti airMax 5 GHz PowerBeam AC Gen2 with RF Isolator Shielding Ring. The Ubiquiti PBE-5AC-ISO-Gen2 offers a rear housing with a metal-plated interior, designed to enhance RF shielding. Additionally, an included protective radome shields the PowerBeam 5AC ISO Gen 2 from nature's harshest elements. The integrated isolator design spatially filters out interference, so the PBE-5AC-ISO-Gen2 delivers improved noise immunity in co-location deployments.

Features

Improved Noise Immunity
Up to 500Mbps actual TCP Throughput
Ubiquiti InnerFeed technology integrates the radio into the feedhorn
Advanced RF Analytics
Industrial-Strength Construction
Breakthrough RF Isolation

Details
Manufacturer's Code	PBE-5AC-ISO-Gen2
Dimensions	459 x 459 x 261 mm (18.07 x 18.07 x 10.28")
Weight (Mount Included)	3.22 kg (7.10 lbs)
Power Supply	24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption	8.5W
Power Method	Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range	20 to 26VDC
Antenna Gain	25 dBi
Networking Interface	(1) 10/100/1000 Ethernet Port
Processor Specs	MIPS 74Kc
Memory	64 MB
LEDs	Power, Ethernet, (4) Signal Strength
Channel Sizes	PtP Mode 10/20/30/40/50/60/80 MHz, PtMP Mode 10/20/30/40 MHz
Antenna Feed Material	Outdoor UV Stabilized Plastic
Dish Reflector Material	Powder-Coated SPCC
Mounting	Pole-Mounting Kit (Included)
Wind Loading	559 N @ 200 km/h (125.7 lbf @ 125 mph)
Wind Survivability	200 km/h (125 mph)
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature	-40 to 70° C (-40 to 158° F)
Operating Humidity	5 to 95% Noncondensing
RoHS Compliance	Yes
Salt Fog Test	IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test	IEC 68-2-6
Temperature Shock Test	IEC 68-2-14
UV Test	IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test	ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Certifications	CE, FCC, IC
