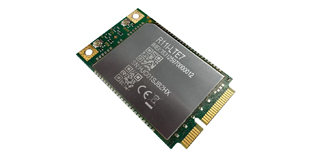

MikroTik R11e-LTE7 3G/4G/LTE CAT7 miniPCI-e Card with Carrier Aggregation and Band 28 support

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Description

Specifications

Resources

Package Contents

The MikroTik R11e-LTE7 is an easy drop-in upgrade for RouterBOARD integrators. This miniPCIe CAT7 modem delivers up to 300 Mbps with Band 28 & 32 support and carrier aggregation for better rural performance. Fully compatible with RouterOS v7 devices such as LtAP and RBM33G – upgrade your LTE speed without changing your setup.

The next-generation miniPCIe LTE CAT7 modem for your RouterBOARDs. Drop-in replacement for FG621-EA – now offering 300 Mbps down / 100 Mbps up, with added Band 32 & Band 28 support.

Perfect for LtAP, RBM33G, or any system with miniPCIe or USB (if you’re using an adapter). Compared to the previous FG621 version, this miniPCIe unit has a smaller form-factor, so it should fit better inside more devices. Upgrade your mobile connectivity without changing the whole setup!

Features

LTE Cat7
Supports Band 28

Details
Product code	R11e-LTE7
MTBF	Approximately 100000 hours at 25°C
Tested ambient temperature	-10°C to 55°C
Max power consumption	5 W
RF connector type	2 uUFL
3G Category	R8 (DL 42.2 Mbps; UL 5.76 Mbps)
3G bands	1 (2100MHz), 5 (850MHz), 8 (900MHz), 3 (1800MHz)
LTE Category	7 (DL 300 Mbps; UL 100 Mbps)
MIMO DL	2x2
MIMO UL	1x1
LTE FDD bands	1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz), 32 (1500MHz)
LTE TDD bands	38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
TAC	35312597
Certification	CE, ROHS
IP rating	IP00
