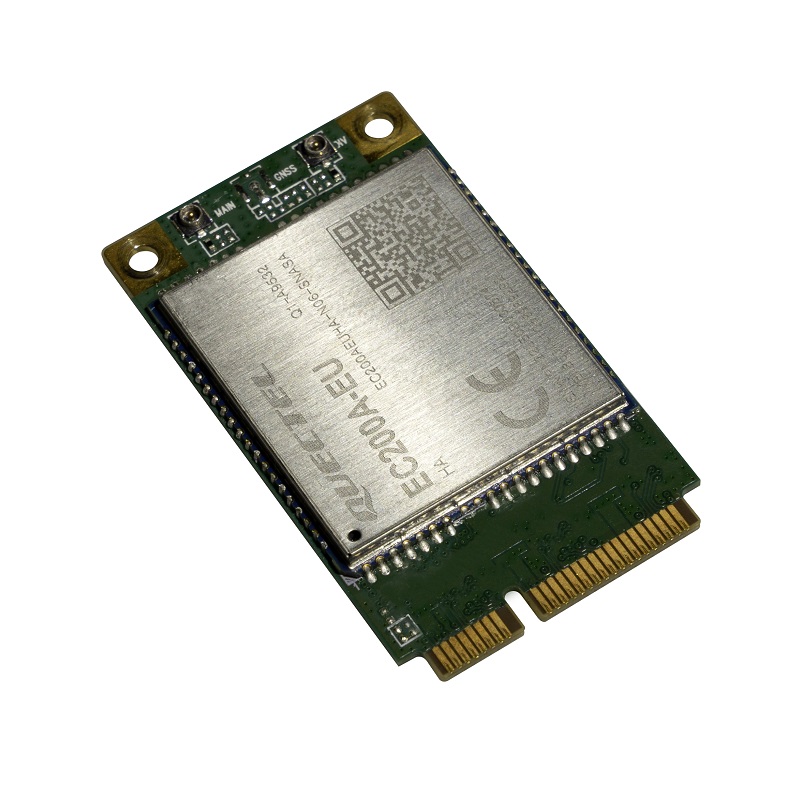

The MikroTik R11eL-EC200A-EU is an extra cost-effective upgrade of MikroTik's previous R11 LTE4 modem. It offers the same speed (up to 150 Mbps) and features as the earlier version, but the price is even lower now!
This mini-PCIe modem is designed for the EMEA/APAC/Australia regions, and the supported frequencies include the popular B28 band.
This mini-PCIe modem is designed for the EMEA/APAC/Australia regions, and the supported frequencies include the popular B28 band.
Features
- LTE Category 4 Modem (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
- LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
- 3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
- 2G bands 3 (1800MHz) / 8 (900MHz)
| Details | |
|---|---|
| Product code | R11eL-EC200A-EU |
| LTE modem | EC200A-EU |
| TAC | 86314105 |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| Supported target regions | EMEA/APAC/Australia |
| LTE FDD bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) |
| 2G Category | Class12 |
| 2G bands | 3 (1800MHz) / 8 (900MHz) |
| Max power consumption | 3 W |
| Operating temperature | -35°C to +70°C |
| Connector | 2x u.FL |
| Form Factor | miniPCIe |
| Details |
|---|
4G
U.FL
600-999MHz , 1700-2100MHz , 2.6GHz
