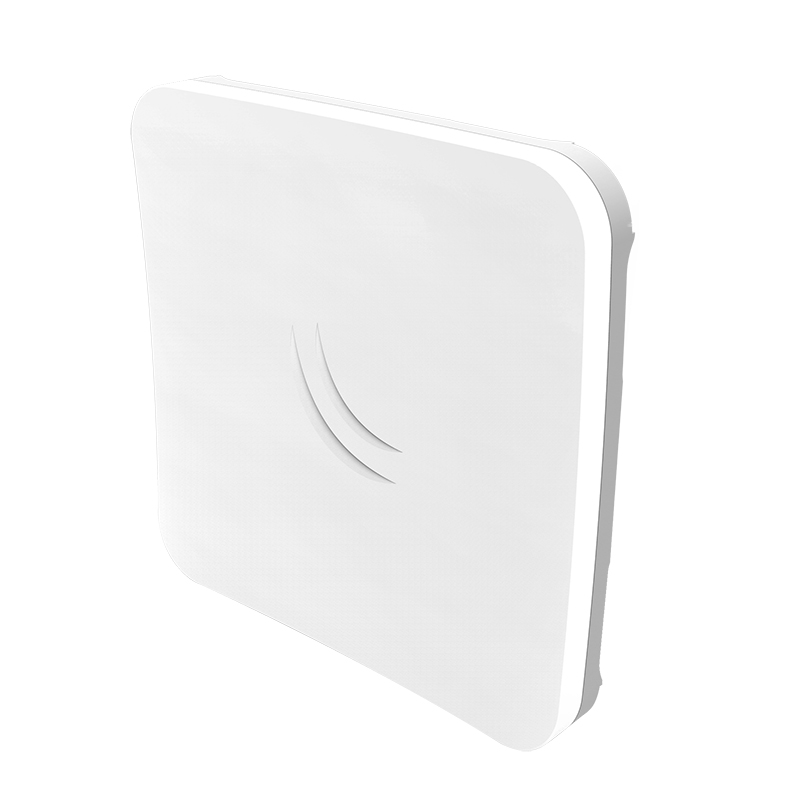

MikroTik RBSXTsq2nD High Power 2.4GHz Dual Chain 802.11b/g/n CPE Bridge. The MikroTik RBSXTsq2nD Lite2 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount.
The MikroTik SXTsq Lite2 retains a 10 dBi antenna like the SXT Lite2, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.
Features
- High Power 2.4GHz, great for Near Line of Sight wireless links
| Details | |
|---|---|
| Product code | RBSXTsq2nD |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 129 x 129 x 34 mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +70°C |
| Max Power consumption | 5W |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 1 (PoE-IN) |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| TX Power | 30 dBm (1 Watt) |
| Antenna gain dBi for 2.4 GHz | 10dBi |
| Wireless 2.4 GHz chip model | QCA9533 |
| 10/100 Ethernet ports | 1 |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
| Details | |
|---|---|
| Power Supply | 24VDC 0.38A PSU |
| Power Injector | RBGPOE |
| Mounting Hardware | Bracket, Hose Clamp |
100Mbps
Wi-Fi 4
2.4GHz
PoE (non standard)
