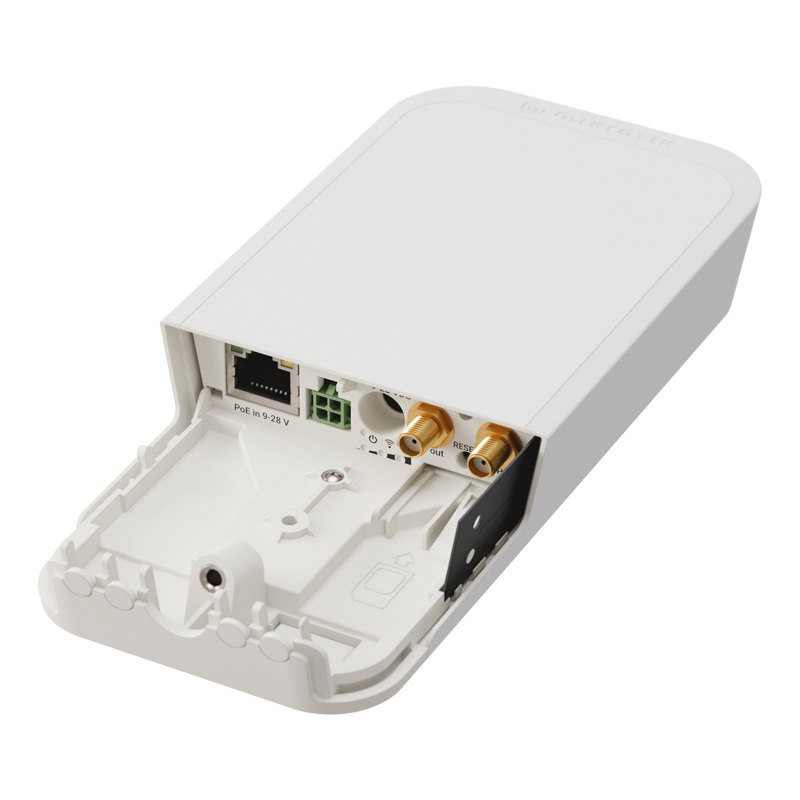

MikroTik wAP LR9G kit with 900MHz LoRa and 2.4GHz WiFi - RBwAPR-2nD&R11e-LR9G. MikroTik’s IoT portfolio expands with two new entries for the US and other 915 MHz markets, the wAP LR9G kit, a weatherproof gateway for LoRa® outdoor use, and the R11e-LR9G, a miniPCIe concentrator card with built-in GPS and upgraded sensitivity.
These tools bring long-range, low-power connectivity within everyone’s reach – perfect for smart agriculture, industrial telemetry, and DIY IoT setups.
The wAP LR9G kit is a rugged, out-of-the-box LoRa gateway ready built into MikroTik’s proven wAP form factor.
These tools bring long-range, low-power connectivity within everyone’s reach – perfect for smart agriculture, industrial telemetry, and DIY IoT setups.
The wAP LR9G kit is a rugged, out-of-the-box LoRa gateway ready built into MikroTik’s proven wAP form factor.
Features
- LoRa 915 MHz support (AU915–928, US902–928, AS923, KR920–923)
- Built-in GPS (via MT3337V)
- Improved Rx sensitivity: up to -141 dBm
- 2.4 GHz Wi-Fi (802.11b/g/n dual-chain)
- Passive PoE support and wide voltage input range
- 3 power input options: PoE, automotive, or DC jack
- SMA female connectors for external antenna options
| Details | |
|---|---|
| Product code | RBwAPR-2nD&R11e-LR9G |
| LoRa Model | R11e-LR9G; GD32L233RCT6 |
| GNSS interface model | MT3337V |
| GNSS standard | GPS |
| LoRa band | 915 MHz (AU915–928, US902–928, AS923, KR920–923) |
| Max LoRa Rx sensitivity | -141 dBm |
| Wi-Fi | 300 Mbit/s, 2x2 802.11b/g/n Wi-Fi 4 |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage | 9-28 V |
| Automotive input Voltage | 12-30 V |
| Max power consumption | 7 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 9-28 V |
| 10/100 Ethernet ports | 1 |
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| GPS RF connector type | uUFL |
| Certification & Approvals | FCC, IC, EAC |
| IP | 54 |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Details | |
|---|---|
| Included | 24V 0.8A power adapter, K-52 fastening set, wAP desktop stand, wAP ceiling mount bracket, Metal ring (one), 0.35m 4pin Automotive adapter cable, PoE injector |
Wi-Fi 4 , GPS/GNSS , LoRAWAN
RJ45 , SMA , U.FL
2.4GHz
PoE (non standard)
