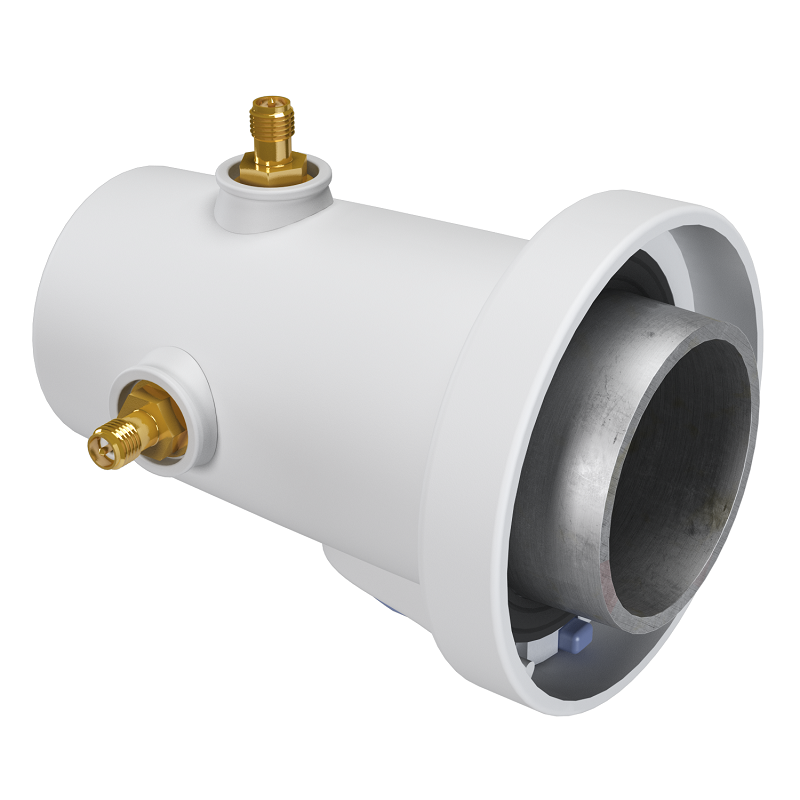

RF Elements StarterAdapter SMA for use with StarterDish Antenna. StarterAdapter SMA connects to StarterDish antennas and provides female RP-SMA connectors - standard coaxial interface for any 3rd party radios. STA-SMA has dual linear H+V polarization.
STA-SMA covers a wide spectrum of 5150 - 5950 MHz with VSWR well below 1.8 throughout the whole bandwidth. STA-SMA is a waveguide-based adapter. Since waveguide has near-zero loss, the adapter introduces practically zero attenuation in the waveguide part. The transition from coaxial connectors to waveguide feeder is optimized for minimum loss as well.
STA-SMA covers a wide spectrum of 5150 - 5950 MHz with VSWR well below 1.8 throughout the whole bandwidth. STA-SMA is a waveguide-based adapter. Since waveguide has near-zero loss, the adapter introduces practically zero attenuation in the waveguide part. The transition from coaxial connectors to waveguide feeder is optimized for minimum loss as well.
| Details | |
|---|---|
| Manufacturer's Product Code | STA-SMA |
| Antenna Connection | Waveguide Port |
| Radio Connection | 2x RP-SMA female |
| Materials | Insert - Aluminium Alloy, Adaptor - UV stabilized and weather resistant ABS plastic |
| Flame Rating | UL 94 HB |
| Operating Temperature | -40°C to +60 °C (-40°F to +140°F) |
| Wind Survival | 160 km/h |
| Frequency Range | 5150 - 5950 MHz |
| Polarization | Dual Linear H + V |
| Antenna Compatibility | Any StarterDish Antennas |
| Details |
|---|
RP-SMA , Waveguide
5GHz
