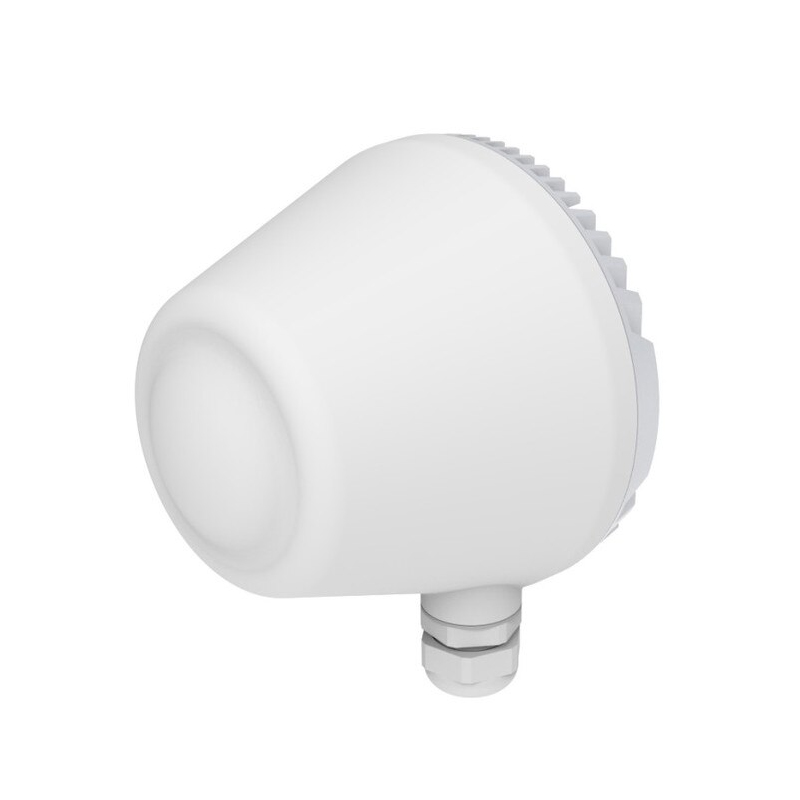

The Tachyon Networks TNA-303L-65 60 GHz PTP/Client Radio is the latest addition to Tachyon’s 60GHz lineup, offering full support for the unlicensed 60GHz band and seamless compatibility with existing TNA models. It delivers speeds up to 1 Gbps in an ultra-compact, cost-efficient form - making it the most affordable option in its class.
Fiber-like speeds using the 60GHz band
1 Gbps can be achieved and distances of up to 2+ km (PTP) and 1+ km (PTMP) without trenching, permits, or licenses.
Upper-band support
All models support the full 60GHz band, including channels 5 and 6 (57-71 GHz), enabling longer links and increased co-location opportunities.
Ultra-compact design
The TNA-303L features an ultra-compact design which can blend into any surroundings and features extremely low wind loading.
Best overall affordability
The low cost of the TNA-300 series product family, combined with high subscriber density and quick installation, greatly decreases total cost of ownership for service providers.
Also now available as a "link in a box" kit TNA-303L-65-LIB SKU, containing two units preconfigured for a quick point-to-point deployment.
Fiber-like speeds using the 60GHz band
1 Gbps can be achieved and distances of up to 2+ km (PTP) and 1+ km (PTMP) without trenching, permits, or licenses.
Upper-band support
All models support the full 60GHz band, including channels 5 and 6 (57-71 GHz), enabling longer links and increased co-location opportunities.
Ultra-compact design
The TNA-303L features an ultra-compact design which can blend into any surroundings and features extremely low wind loading.
Best overall affordability
The low cost of the TNA-300 series product family, combined with high subscriber density and quick installation, greatly decreases total cost of ownership for service providers.
Also now available as a "link in a box" kit TNA-303L-65-LIB SKU, containing two units preconfigured for a quick point-to-point deployment.
Features
- 60GHz PTP+PTMP Client
- Beam steering: 8º x 8º
- Ultra-compact, weatherproof design with an integrated antenna
- Operating mode options: Station, PTP (software configurable)
- Channels 1-6 (57-71GHz)
- Up to 1 Gbps throughput (real world speeds) for high-capacity backhauls
- Fully compatible with the existing TNA-300 series models
| Details | |
|---|---|
| Manufacturer's Code | TNA-303L-65-AU |
| Operating modes | Station, PTP (software configurable). |
| Max EIRP | 54dBm (regulatory dependent) |
| Link encryption | AES 128 + GCMP |
| Frequency & supported channels | Full band: 57-71 GHz: channels: 1-6, Half channels: 1-12 (see notes on support site about half channel support) |
| Channel size options | Full (2 GHz), half (1 GHz) (see notes on support site about half channel support) |
| Station scheduling | TDMA: dynamic scheduling mechanism |
| Beam steering | 8º x 8º |
| Duplexing | TDD |
| Max MTU size | 7900 b |
| Networking mode | Transparent bridge |
| VLAN capabilities | Data VLAN (in station mode) & management VLAN |
| Other features | Traffic shaping (station mode), DHCP snooping, device discovery, speedtest, and more |
| IPv4/IPv6 support | Both are supported |
| Management | Web interface, SNMP v2 & v3, SNMP traps, & RESTful API (SSH available upon request) |
| Interfaces | 1x 1G ethernet, 1x USB Type-A for aiming |
| Mount | Pole mount included |
| PoE input power | Active PoE 38-57VDC (passive injector included) |
| Max power consumption | 15W |
| Operating temperature | -30°C - 55°C |
| Base Unit dimensions & weight | Height: 13cm, Width: 12 cm, Depth: 10cm, 425 g |
| LEDs | Ethernet link status, wireless status, signal level, & power |
| Details | |
|---|---|
| Power Supply | 48V 0.5A PoE adapter included |
| Mounting Hardware | Pole mount included |
Proprietary
RJ45 , USB
60GHz
PoE (non standard) , PoE (802.3af/at) , POE (802.3bt)
