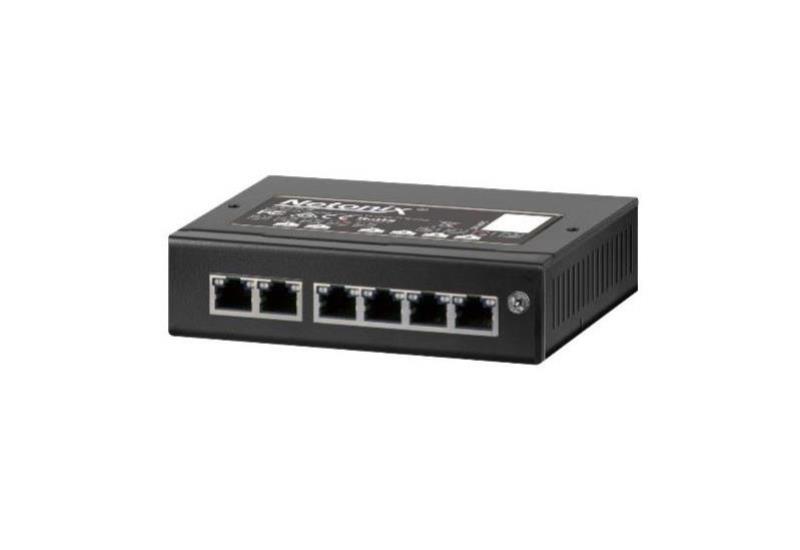

The Netonix® WISP Switch™ model WS-6-MINI is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.
Important: Check device POE type and pinout before enabling 48VH Setting! i.e. 48VH Ports should only be used by compatible devices such as Ubiquiti airFiber (AF24, AF5), Mimosa (B5, B5c), Cambium (PTP670, PTP820S).
Note: Stock is Rev F and newer, this model no longer supports a 24VH output.
Important: Check device POE type and pinout before enabling 48VH Setting! i.e. 48VH Ports should only be used by compatible devices such as Ubiquiti airFiber (AF24, AF5), Mimosa (B5, B5c), Cambium (PTP670, PTP820S).
Note: Stock is Rev F and newer, this model no longer supports a 24VH output.
Features
- Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes
- The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH)
- The only switch line on the market that has current sensors on all passive POE ports
- Port 1 will accept passive 48VH (48-53V) using all 4 pairs like a POE injector used to power an airFIBER 24 GHz
- DO NOT power the WS-6-MINI with a standard passive POE adapter that only supplies 48V power on 2 pairs
- If powering the WS-6-MINI with a 48-53V barrel connector power supply port 1 has no POE options, it is just a standard Ethernet port
- If powering the WS-6-MINI with a barrel connector power supply be sure to connect the ground screw to Earth Ground for ESD protection
Details | |
---|---|
Manufacturer's Code | WS-6-MINI |
Operating Temperature | -25 to 55°C |
24V PoE Ports Pins 4,5 (+) Pins 7,8 (-) | Ports 03-06 |
48V PoE Ports Pins 4,5 (+) Pins 7,8 (-) | Ports 03-06 |
48VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-) | Port 02 |
Dimensions | 127mm x 118mm x 32mm |
Details | |
---|---|
Mounting Hardware | Desktop / Wall mount |
1Gbps
PoE (non standard)
