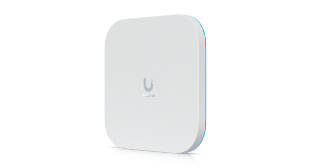

Ubiquiti UniFi E7 is an enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.
PoE NOT included
PoE NOT included
Features
- WiFi 7 with 6 GHz support
- 10 spatial streams
- Real-time spectral analysis for enhanced channel selection
- Dedicated spectral analyzer radio
- 185 m² coverage
- 1,000+ connected devices
- (1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy
- Backwards compatible mounting system
- Powered using PoE++
| Details | |
|---|---|
| Manufacturer's Code | E7 |
| Dimensions | 250 x 250 x 43.5 mm |
| Weight | 1.8 kg |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| WiFi Standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Networking Interface | (1) 10 GbE RJ45 port, (1) 1 GbE RJ45 port |
| Power Method | PoE++ |
| Power Supply | UniFi PoE switch |
| Supported Voltage Range | 42.5—57V DC |
| Maximum Power Consumption | 43W |
| Maximum TX Power | 2.4 GHz @ 23 dBm, 5 GHz @ 30 dBm, 6 GHz @ 24 dBm |
| MIMO (DL/UL MU-MIMO) | 2.4 GHz - 2 x 2, 5 GHz - 4 x 4, 6 GHz - 4 x 4 |
| Antenna Gain | 2.4 GHz @ 5 dBi, 5 GHz @ 6 dBi, 6 GHz @ 6 dBi |
| Antenna | Internal with omni patterns |
| LEDs | R/G/B |
| Mounting | Wall/ceiling (Included) |
| Ambient Operating Temperature | -30 to 50° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Injector | Not Included |
| Wall Mount | Wall/Ceiling (Kits Included) |
1Gbps
Wi-Fi 7
RJ45
2.4GHz , 5GHz , 6-38GHz
POE (802.3bt)
