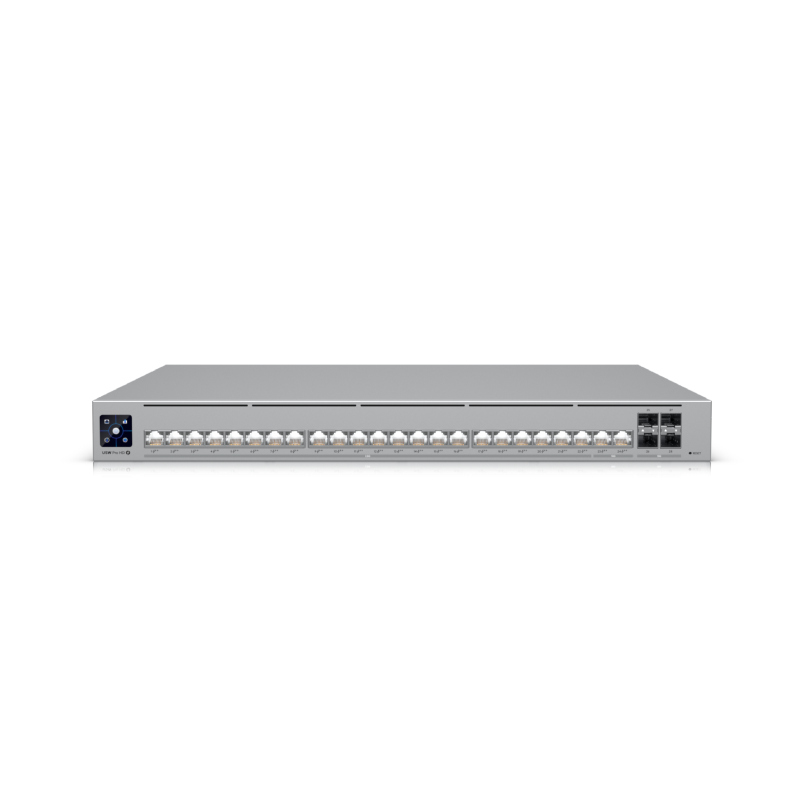

Ubiquiti UniFi Pro HD 24 PoE, Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports. Total PoE budget of 600W.

Features

Etherlighting™ - A Cable Management Dream, Identify native VLANs with a glance. Instantly differentiate ports by speed. Find any device in seconds.
Ideal for 6 GHz WiFi Access Points, Featuring 2.5 / 5 / 10 GbE ports for enterprise performance.
PoE++ Output - Delivers max power and speed for advanced UniFi devices—all through one cable.
Power Redundancy - Keep your UniFi switches online during power failures with seamless backup and automatic failover.
(22) 2.5 GbE, (2) 10 GbE PoE++ ports
(4) 10G SFP+ ports
600W total PoE availability

Details
Manufacturer's Code	USW-Pro-HD-24-PoE
Dimensions	442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Port Layout	22x 2.5 GbE RJ45 (All PoE++) (2.5G/1G/100M/10M), 2x 10 GbE RJ45 (All PoE++)(10G/5G/2.5G/1G/100M), 4x 10G SFP+ (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	600W
Redundancy	DC Power Backup
Layer 3	Yes
Form Factor	Rack mount (1U)
Etherlighting™	Yes
Switching Capacity	230 Gbps
Total Non-Blocking Throughput	115 Gbps
Forwarding Rate	171 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
L3 Table Size	ARP Entries: 12,000, IPv4 Routes: 12,000
Packet Buffer Size	2 MB
Access Lists	IPv4: 128, MAC: 128
Layer 3 Features	DHCP Server (Local Networks), DHCP Relay, Inter-VLAN Routing (Local Networks), Static Routing (Local Networks)
Layer 2 Features	LACP Port Aggregation, STP & RSTP, QoS (DSCP), Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron), Advanced IGMP Configuration (Querier, Fast Leave, Router Port), IGMP Snooping, 802.1X Control, MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, MAC Address Blocking, IP-Based ACLs & Network Isolation MAC-Based Port Restriction, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection
PoE++ Ports	24
Max. PoE Wattage per Port by PSE	PoE: 15.4W, PoE+: 30W, PoE++: 64W
Max. Power Consumption	60W (Excluding PoE Output), 660W (Including PoE Output)
Power Method	(1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 660W
Supported Voltage Range	100—240V AC
Management	Ethernet, AR
Weight	Without mounting brackets: 6.2 kg (13.7 lb). With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	600 - 1,200 mm (23.6- 47.2" )
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Etherlighting™	Ethernet, SFP+
NDAA Compliant	Yes
Certifications	CE, FCC, IC
Application Requirements	UniFi Network Version 9.0.114 and later
