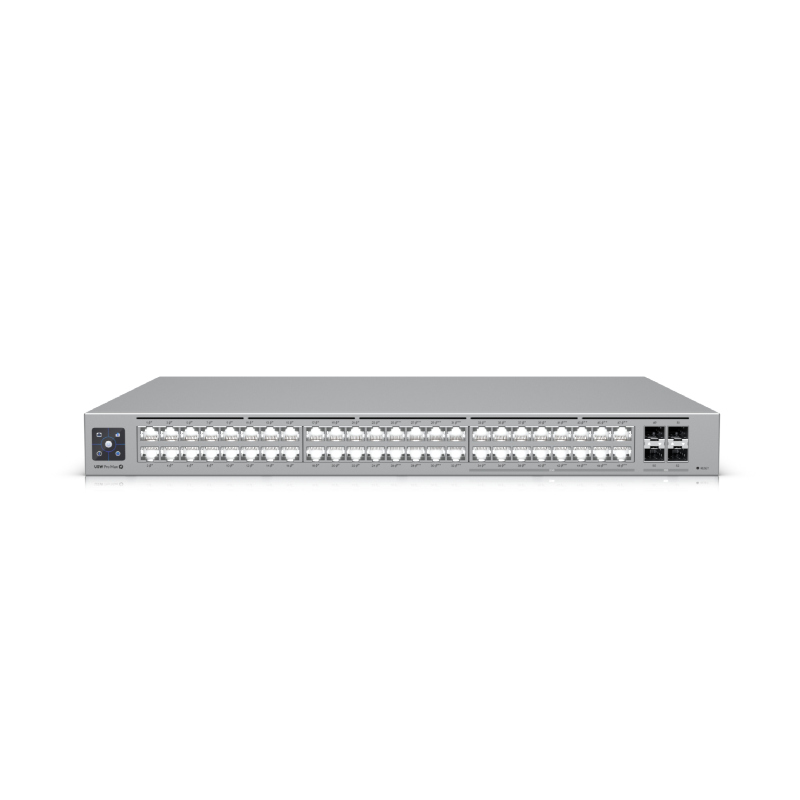

UniFi Pro Max 48 PoE Switch with Etherlighting

$2,666.00 +GST

30 In Stock

SKU: USW-Pro-Max-48-PoE

Warranty

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Specifications

Resources

Package Contents

The USW-Pro-Max-48-PoE is a 48-port, Layer 3 switch with 2.5 GbE and PoE++ output and supports the new Etherlighting™ technology.

Features

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
(16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
(32) GbE ports including (24) PoE+ and (8) PoE++
(4) 10G SFP+ ports
DC power backup ready
720W total PoE availability
Managed with UniFi Network 8.0.24 and later

Details
Manufacturer's Code	USW-Pro-Max-48-PoE
Dimensions	442.4 x 400 x 44 mm
Weight	Without mounting brackets: 6.2 kg, With mounting brackets: 6.3 kg
Enclosure material	SGCC steel
Management Interface	Ethernet In-Band
Networking Interface	(32) GbE RJ45 ports, (16) 1/2.5 GbE RJ45 ports, (4) 10G SFP+ ports
PoE Interface	(32) PoE/PoE+, (16) 60W PoE++
Total Non-blocking Throughput	112 Gbps
Switching capacity	224 Gbps
Power method	(1) Universal input, 100—240V AC, 50/60 Hz, (1) USP-RPS DC input
Power Supply	AC/DC, internal, 820W
Supported Voltage Range	100—240V AC
Max Power Consumption	100W (Excluding PoE output)
Total Available PoE	720W
Max PoE Wattage Per Port By PSE	PoE: 15.4W, PoE+: 30W, PoE++: 60W
Voltage Range PoE Mode	PoE: 44—57V, PoE+: 50—57V
LCM Display	(1) 1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C
Ambient Operating Humidity	10 to 90% noncondensing
Etherlighting™	Ethernet/SFP: Locating, Speed/link, Native VLAN/network
