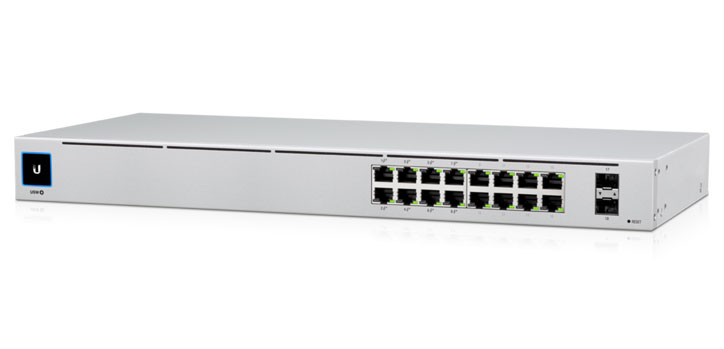

UniFiSwitch 16 Port Gen 2 Gigabit Managed PoE Switch with SFP. The Ubiquiti USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including 8 x auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fibre uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Note: Only Ports 1-8 can supply POE+ IEEE 802.3af/at and that the Total available power budget is only 42 Watts.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Note: Only Ports 1-8 can supply POE+ IEEE 802.3af/at and that the Total available power budget is only 42 Watts.
Features
- 8 Ports Auto-Sensing IEEE 802.3af/at PoE
- SFP Ports for Gigabit Fibre Connectivity
- Fanless, Silent Thermal Cooling
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
| Details | |
|---|---|
| Manufacturer's Code | USW-16-POE-AU |
| Dimensions | 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72") |
| Weight | 2.80 kg (6.17 lb), With Brackets: 2.89 kg (6.37 lb) |
| Interfaces | Networking (16) 10/100/1000 RJ45 Ports, (2) 1G SFP Ethernet Ports |
| Management | Ethernet In-Band |
| Total Non-Blocking Throughput | 18 Gbps |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.78 Mpps |
| Power Method | 100-240VAC, 50/60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 60W |
| Voltage Range | 100 to 240VAC |
| Max Power Consumption (Excluding PoE Output) | 18W |
| LEDs | System Status, RJ45 Data Ports PoE; Speed/Link/Activity, SFP Data Ports Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Total Available PoE | 42W |
| PoE Interfaces | Ports 1-8 POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) |
| Max. PoE Wattage per Port by PSE | 802.3at 32W |
| Voltage Range | 802.3af Mode 44-57V, 802.3at Mode 50-57V |
| Details | |
|---|---|
| Power Supply | IEC Power Cord |
| Mounting Hardware | 1U Rackmount |
1Gbps
RJ45 , SFP
