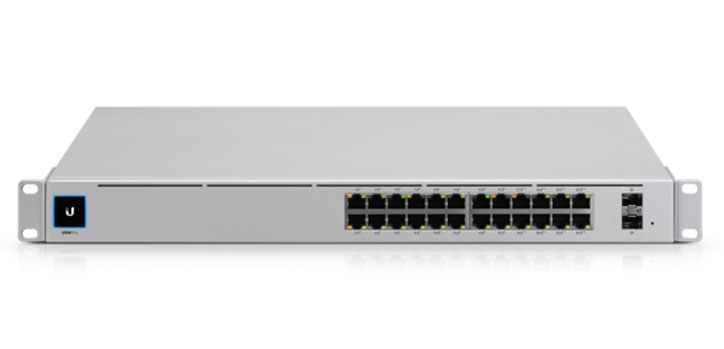

Ubiquiti UniFiSwitch Gen2 24 Port Pro Gigabit Managed PoE+ Switch

USW-PRO-24-POE
SKU: USW-Pro-24-POE
UniFiSwitch 24 Port Pro Gigabit Managed PoE+ Switch
Integrated PoE
PoE (802.3af/at) , POE (802.3bt)
Ethernet Speed
1Gbps , 10Gbps
Warranty:
In stock
Description
Description
Specifications
Resources
Package Contents
Ubiquiti UniFiSwitch Gen2 24 Port Pro Gigabit Managed PoE+ Switch. The Ubiquiti UniFiSwitch USW-Pro-24-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Sixteen PoE+ and eight PoE++ RJ45 ethernet ports have total 400W PoE budget, and two SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.

In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities*, such as inter-VLAN routing, static routing, and DHCP server functionality.

New replacement for older US-24-250W and US-24-500W PoE Switches.

Note: Layer3 will be included in later software release

The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.
Features
  • 24 Port Auto-Sensing IEEE 802.3af/at/bt PoE
  • SFP+ Ports for 10G Links
  • Integrated Fans for Near-Silent Cooling
  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot Support
Details
Manufacturer's CodeUSW-Pro-24-POE-AU
Dimensions442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72")
Weight4.30 kg (9.48 lb), With Brackets 4.39 kg (9.68 lb)
InterfacesNetworking (24) 10/100/1000 RJ45 Ports, (2) 1/10G SFP+ Ethernet Ports
ManagementEthernet In-Band
Total Non-Blocking Throughput44 Gbps
Switching Capacity88 Gbps
Forwarding Rate65.472 Mpps
Power MethodUniversal Input 100-240VAC, 50/60 Hz, USP RPS DC Input 52VDC, 7.69A; 11.5VDC, 2.61A
Power SupplyAC/DC, Internal, 450W
Voltage Range100 to 240VAC
Max Power Consumption (Excluding PoE Output)50W
LEDsSystem Status, RJ45 Data Ports PoE; Speed/Link/Activity, SFP+ Data Ports Link/Activity
ESD/EMP ProtectionAir: ± 16 kV, Contact: ± 12 kV
Shock and VibrationETSI300-019-1.4 Standard
Operating Temperature-5 to 40° C (23 to 104° F)
Operating Humidity10 - 90% Noncondensing
CertificationsCE, FCC, IC
Total Available PoE400W
PoE InterfacesPorts 1-16 PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-), Ports 17-24 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE Wattage per Port by PSE802.3at 32W, 802.3bt 64W
Voltage Range802.3af Mode 44-57V, 802.3at/bt Mode 50-57V
Details
Power SupplyIEC Power Cord
Mounting Hardware1U Rackmount
