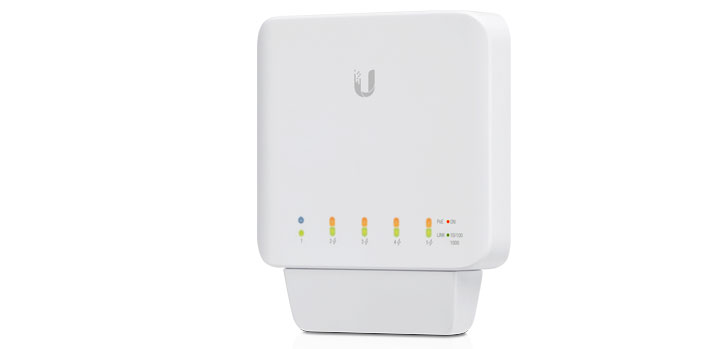

Ubiquiti Indoor/Outdoor 5-Port PoE Gigabit Switch with PoE++ 802.3bt Input Power Support. Build and expand your network with the UniFi Switch, model USW-Flex. The USW-Flex is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers five RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.
The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.
The USW-Flex is designed for indoor or outdoor use and can be used with optional USW-Flex-Utility enclosure. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations.
The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.
The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial switch, which provides 60W of 802.3bt PoE++.
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.
The USW-Flex is designed for indoor or outdoor use and can be used with optional USW-Flex-Utility enclosure. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations.
The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.
The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial switch, which provides 60W of 802.3bt PoE++.
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Features
- (1) GbE, PoE++ RJ45 input
- (4) GbE, PoE+ RJ45 ports
- Up to a 46W total PoE supply*
- Weatherproof design with multiple mounting options
- Power with: POE-50-60W, USW-24-PoE, USW-Pro-24-PoE, USW-Industrial
| Details | |
|---|---|
| Manufacturer's Code | USW-Flex |
| Dimensions | 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10") |
| Weight | 230 g (8.11 oz) |
| Networking Interfaces | (5) 10/100/1000 Mbps RJ45 Ports |
| Management Interface | Ethernet In-Band |
| Power Method (Port 1) | PoE Mode 1: 802.3af/at (Pins 1, 2+; 3, 6-), PoE Mode 2: 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-), PoE Mode 3: 50V/60W PoE Adapter (See Data sheet for more details) |
| PoE Out (Ports 2-5) | 802.3af (Pins 1, 2+; 3, 6-) |
| Max Power Consumption | 5W (Excluding PoE Output) |
| Max PoE Wattage Per Port | 15.4W |
| Total PoE Power Budget | Powered by AF mode PSE: 8W, Powered by AT mode PSE: 20W, Powered by BT mode PSE: 46W, Powered by PoE Adapter:46W (Enabled in Controller) |
| Voltage Range | 802.3af: 44 - 57V, 802.3at/bt: 50 - 57V |
| LEDs | System Status, RJ45 Data Ports PoE; Link/Speed/Activity |
| ESD/EMP Protection | ± 16kV Air, ± 16kV Contact |
| Operating Temperature | 46W PoE Output: -40 to 55° C (-40 to 131° F), 25W PoE Output: -40 to 65° C (-40 to 149° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | Not Included, recommend: PoE++ switch, USW-Industrial, POE-50-60W |
1Gbps
RJ45
PoE (non standard) , PoE (802.3af/at) , POE (802.3bt)
