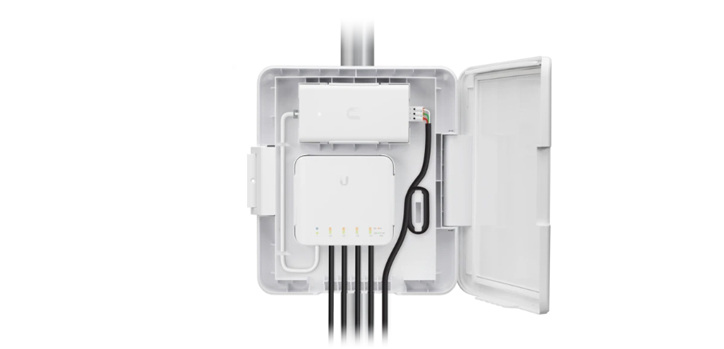

Ubiquiti Flex Switch Adapter Kit for Street Light Pole Applications. The USW Flex Utility is an outdoor weatherproof enclosure designed for use with the UniFi Switch Flex, USW-Flex. It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W. The USW Flex Utility can be easily mounted on a pole, provides clean cable management and screw lock for security.
Note: UniFi Switch Flex, USW-Flex, sold separately
Note: UniFi Switch Flex, USW-Flex, sold separately
| Details | |
|---|---|
| Manufacturer's Product Code | USW-Flex-Utility |
| Dimensions | 249 x 218 x 60 mm(9.80 x 8.58 x 2.36" |
| Weight | 740 g (26.10 oz) |
| Output Voltage | 54V, 1.11A |
| Rated Voltage | 100-240VAC |
| Input Current | 1.5A (Max.) |
| Efficiency | > 86% |
| Output Ripple | 200mVpp |
| Line Regulation | < 1% |
| Load Regulation | < 3% |
| 4-Pair Powering | Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8- |
| Operating Temperature | -20 to 60˚ C (-4 to 140˚ F) |
| Storage Temperature | -30 to 70˚ C (-22 to 158˚ F) |
| Operating Humidity | 5 to 90%, Noncondensing |
| Surge Immunity | 4kV Difference and Common Mode |
| Details | |
|---|---|
| PoE Power Supply | Included |
| AC Terminal Block | Included |
| Mounting Brackets | Included |
PoE (non standard)
