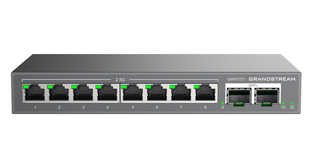

Grandstream GWN7721 Layer 2-Lite Managed Multi-Gig Switch, 8 x 2.5 GigE, 2 x 10G SFP+

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Description

Specifications

Resources

Package Contents

The Grandstream GWN7721 Layer 2-Lite Managed Multi-Gig Switch, 8 x 2.5 GigE, 2 x 10G SFP+. The GWN7721 are 10-port Layer 2 Lite Managed Switches equipped with 8 x 2.5-Gigabit Ethernet ports and 2 10-Gigabit SFP+ ports to allow small-to-medium businesses to build scalable and secure high-speed networks.

These devices support complex VLAN traffic segmentation, port-based VLAN, DSCP and 802.1p QoS priority management modes and IGMP Snooping to provide bandwidth control and maximize network performance. These Layer 2 Lite network switches offer a variety of free and flexible management options, including cloud management with GDMS Networking, on-premise software management with GWN Manager, and through their web user interface. By providing high-speed 2.5 Gigabit Ethernet and 10 Gigabit SFP+ ports, layer 2 lite control, flexible management options, and advanced security protection, the GWN7721 are ideal for small to-medium businesses, hotels, home offices, and more.

Features

8x 2.5 Gigabit Ethernet ports and 2x 10 Gigabit SFP+ ports
Supports Loop Detection, Cable Test and Port Mirroring to quickly locate network faults
SNMPv2 remote monitoring, fault diagnosis, and configuration management
STP/RSTP to guarantee fast convergence, ensure network stability and provide link load balancing
Free and flexible management options include the local web user interface, GWN Manager, and GDMS Networking
DHCP Snooping ensures DHCP packets are only allowed from trusted ports to keep the DHCP environment safe
Built-in QoS allows for prioritization of network traffic

Details
Manufacturer's Code	GWN7721
Network Protocol	IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
2.5 Gigabit Ethernet Ports	8
10 Gigabit SFP+ Ports	2, supports 1Gbps/2.5Gbps/10Gbps
Maximum no. of Supported Modules	SM-10G: 2, MM-10G: 2, RJ45-10G: 1
Power Supply External	12VDC/1 A
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	40Gbps
Switching Capability	80Gbps
Jumbo Frame	1518/2048/3072/4096/5120/6144/7168/8192/9216
Forwarding Rate	59.52Mpps
Pack Buffer	8Mb
MAC	16K MAC address capacity
VLAN	• Supports up to 32 VLANs (out of 4K VLAN IDs) • port-based VLAN, 802.1Q VLAN • DHCP Snooping
LAG	5
Multicast	IGMP Snooping ,Report Message Suppression
QoS	• Auto prioritization of the incoming port of the packet • Priority Mapping • Queue scheduling, including SP, WFQ • Supports port priority, 802.1P priority, and DSCP priority • Bandwidth control • Rate limit
DHCP	DHCP client
Maintenance	Backup and restore, system reboot , Factory Reset, firmware upgrade, Support MAC address search, SNMP, LLDP, Monitoring including port statistics, port mirroring cable test, Ping
Security	• DHCP Snooping • Spanning tree • Loop prevention • PoE Watchdog • Kensington Security Slot (Kensington Lock) support
Mounting	Desktop/ Wall-Mount
LED Indicators	Per device: Power- Green, Per port: Link/Activity - Green
Environmental	Operating Temperature: 0 to 45 °C (32 to 113 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H)	Unit: 190 x 100 x 28mm, Package: 300 x 130 x 53mm
Enclosure	Metal
Weight	Unit: 0.52KG, Entire Package: 0.74KG
Compliance	FCC, CE, RCM, IC
