Ubiquiti UniFi Switch HD 24-Port, Professional-Grade, Layer 3 Etherlighting Switch with 10 GbE & 2.5 GbE

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Specifications

Resources

Package Contents

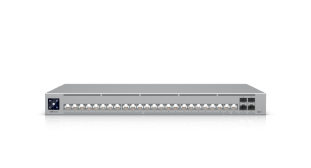

Ubiquiti UniFi Switch HD 24-Port, Professional-Grade, Layer 3 Etherlighting Switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.

Features

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
(22) 2.5 GbE, (2) 10 GbE ports
(4) 10G SFP+ ports
DC power backup ready

Details
Manufacturer's Code	USW-Pro-HD-24
Dimensions	442 x 285 x 44 mm
Weight	Without mounting brackets: 4.2 kg, With mounting brackets: 4.3 kg
Enclosure Material	SGCC steel
Networking Interface	(2) 10/5/2.5/1 GbE, 100 MbE RJ45 ports, (22) 2.5/1 GbE, 100/10 MbE RJ45 ports, (4) 10/1G SFP+ ports
Total Non-Blocking Throughput	115 Gbps
Switching Capacity	230 Gbps
Forwarding Rate	171.12 Mpps
Power Method	(1) Universal input, 100—240V AC, 50/60 Hz, (1) USP-RPS DC input
Power Supply	AC/DC, internal, 60W
Supported Voltage Range	100—240V AC
Maximum Power Consumption	50W
Ambient Operating Temperature	-5 to 40° C
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
