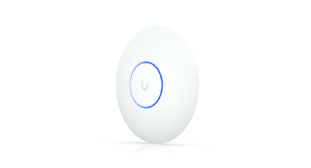

Ubiquiti UniFi U7 Lite is a compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
PoE NOT included
PoE NOT included
Features
- 2.5 GbE Uplink
- Dual-Band WIFi 7
- 2.4 GHz & 5 GHz @ 2 x 2 (DL/UL MU-MIMO)
- 115 m² Coverage Area
| Details | |
|---|---|
| Manufacturer's Code | U7-Lite |
| Dimensions | Ø171.5 x 33 mm |
| WiFi Standard | WIFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting Locations | Ceiling, wall |
| Mounting Plate | Plastic mounting plate (Included) |
| Power Method | PoE |
| MIMO | 2.4 GHz, 5 GHz @ 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain | 2.4 GHz @ 4 dBi, 5 GHz @ 5 dBi |
| Maximum TX Power | 2.4 GHz @ 23 dBm, 5 GHz @ 24 dBm |
| Maximum Power Consumption | 13W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 313 g |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Details | |
|---|---|
| Power Injector | Not Included |
| Wall Mount | Wall/Ceiling (Kits Included) |
1Gbps
Wi-Fi 7
RJ45
2.4GHz , 5GHz
PoE (802.3af/at)
