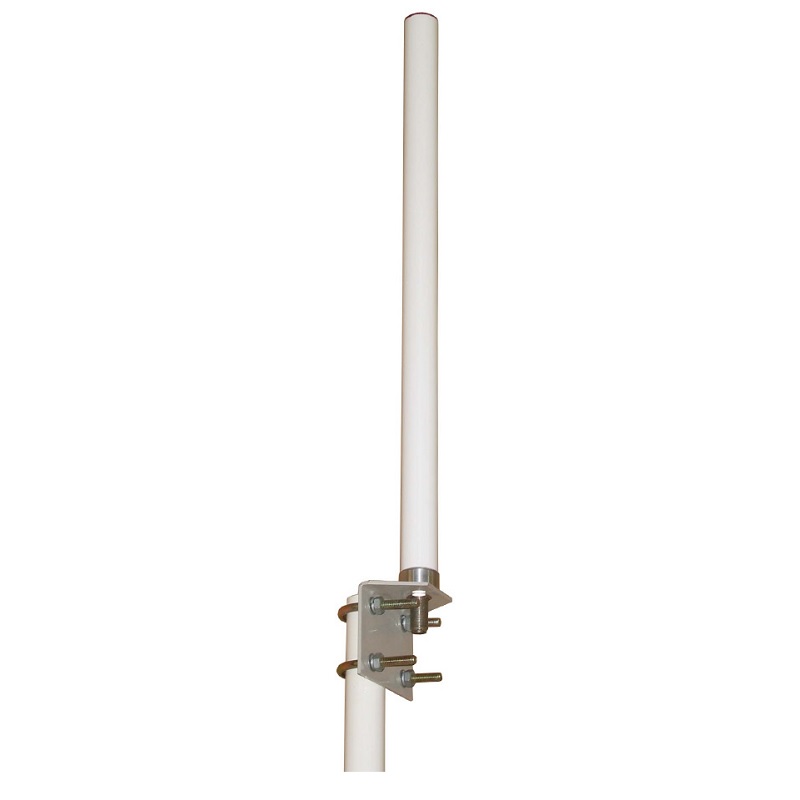

824MHz to 960MHz 6dBi Fiberglass Omni Antenna with N-Female for ISM, GSM, LoRaWAN IoT and Wireless LAN Systems. It is ideally suited for multipoint, Non Line of Sight (NLOS) IoT and mobile applications where high gain and wide coverage is desired. This antenna features an integral N-Female bulkhead type connector that can mount through the wall of an equipment enclosure. Also included with the Omni Antenna is a mast mounting kit, consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 50 mm in diameter.
Features
- Sealed Fiberglass Radome, Strong Protection against the elements
- All Weather Operation
- Stable Steel Mounting Kit
- Suitable for LoRaWAN and Sigfox 865MHz and 923MHz IoT applications
| Details | |
|---|---|
| Manufacturer's Product Code | ANT-281 |
| Freq Range | 824 to 960MHz |
| Gain | 6dBi |
| Horz Beamwidth | 360 deg |
| Vert Beamwidth | 30 deg |
| VSWR | ≤1.5 |
| Impedance | 50 Ohm |
| Polarization | Vertical |
| Max.Power | 100 Watts |
| Connector | N Female |
| Dimensions | 3.6cm x 57.5cm |
| Weight | 0.67 Kg |
| Ratedwind Velocity m/s | 60 |
| Radome | Fiberglass |
| Pole Mount Diameter | 50mm |
| Details | |
|---|---|
| Pole Mount | Included |
LoRAWAN , Proprietary
N-Type
600-999MHz
