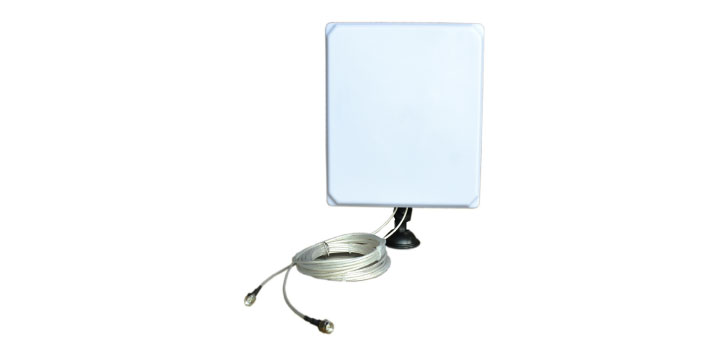

Cellular 5G 4dBi to 7dBi 698-960/1710-2700/3300-3800MHz Indoor Dual Polarity Broadband Directional Antenna. This multi-band antenna is very useful for increasing performance of your indoor 3G, 4G, 5G, LTE cellular broadband router.
Features
- Great Dual polarity 3G, 4G, 5G, LTE cellular broadband antenna
- Perfect for RBI (Rural Broadband Initiative) Cellular broadband Installations
| Details | |
|---|---|
| Manufacturer's Product Code | ANT-261 |
| Frequency Range | 698-960; 1710-2700; 3300-3800 MHz |
| Polarization | ±45 degrees |
| VSWR | ≤2.0 |
| Maximum Gain | Including 3m cable loss 4 to 7dBi |
| Horizontal Beamwidth | 120, 70, 45 degrees |
| Vertical Beamwidth | 110, 40, 30 degrees |
| Impedance | 50 Ohms |
| Maximum power | 50 Watts |
| Grounding | DC Ground |
| Connectors | 2 x SMA-male |
| Antenna size | 190 x 190 x 40 mm |
| Exposed cable size | 300 cm |
| Net Weight | ≤0.5 kg |
| Radome material | ABS |
| Radome colour | White |
| Operating temperature | -40 to 60 degC |
| Application | Indoor |
| Mounting | Suction cup mounting |
| Details | |
|---|---|
| Mounting | Window or Table mount Suction Cap |
SMA
600-999MHz , 1700-2100MHz , 2.4GHz , 3GHz
