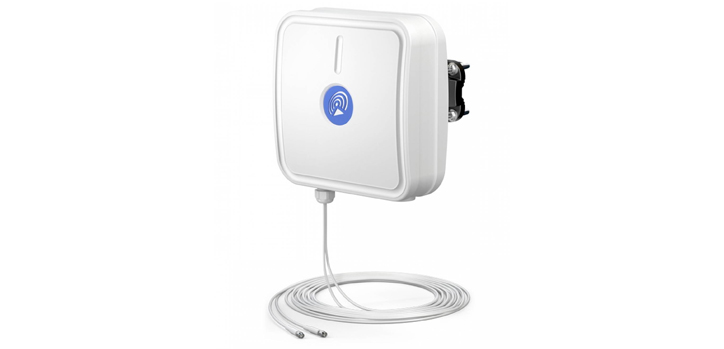

The QuPanel LTE HP directional MIMO 2x2 high gain antenna is perfect for any mobile design that requires a signal boost. The antenna improves the signal in any location where the mobile signal is weak. Due to a very wide frequency range, the antenna is a universal fit for multiple LTE bands including Band 28. It is compatible with Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 and other MIMO 2x2 LTE/3G/2G modems and routers.
Features
- IP67 Outdoor antenna
- Made to fit mount
- 5m SMA cables included
- Dual Polarised for high throughput
- Perfect for RBI (Rural Broadband Initiative) Installations
| Details | |
|---|---|
| Product Code | APLM2-H |
| Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85 |
| Frequency Gain | 0.694-0.96 GHz: 7dBi, 1.7 - 2.2 GHz : 7 dBi, 2.2 - 2.7 GHz: 7dBi |
| Beamwidth | 70°/70° ±15° |
| Polarization | X-Pol |
| Impedance | 50 Ω |
| WiFi Frequencies | 2.40-2.50 GHz (6dBi), 4.70 - 6.00 GHz (7dBi) |
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Ingress Protection | IP67 |
| Dimensions | 272 x 276 x 96 mm |
| Weight | 1.8 kg |
| Operating Temperature | From -40°C to 75°C |
| Details | |
|---|---|
| Contents | IP67 Rated Antenna, Pole/Wall Mount, U-Bolts |
SMA
600-999MHz , 1700-2100MHz , 2.4GHz
