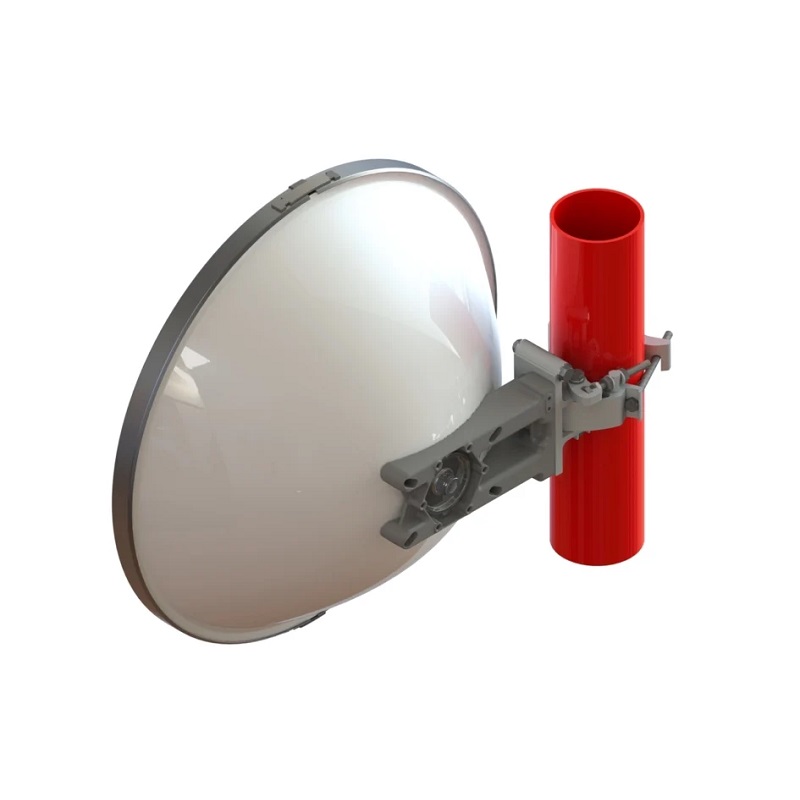

Cambium PTP 820 / PTP 850 2ft Single Polarization Dish Antenna, 11GHz, RFU-C type and Standard Interface UBR100 - Andrew Antenna.
Features
- Compatible with Cambium PTP 820 and PTP 850
- Operating Frequency Band 10.000 - 11.700 GHz
- High Performance 33.7-35.2dBi Antenna
| Details | |
|---|---|
| Product Code | N110082D072A |
| Polarization | Single |
| Diameter, nominal | 0.6 m / 2 ft |
| Waveguide Flange Type | UBR100 |
| Operating Frequency Band | 10.000 – 11.700 GHz |
| Gain, Low Band | 33.7 dBi |
| Gain, Mid Band | 34.5 dBi |
| Gain, Top Band | 35.2 dBi |
| Boresite Cross Polarization Discrimination (XPD) | 30 dB |
| Front-to-Back Ratio | 61 dB |
| Beamwidth, Horizontal | 3.3 ° |
| Beamwidth, Vertical | 3.3 ° |
| Return Loss | 17.7 dB |
| VSWR | 1.3 |
| Compatible Mounting Pipe Diameter | 48 mm–120 mm / 1.9 in–4.7 in |
| Fine Azimuth Adjustment Range | ±15° |
| Fine Elevation Adjustment Range | ±15° |
| Wind Speed, operational | 201 km/h / 124.896 mph |
| Wind Speed, survival | 252 km/h / 156.585 mph |
