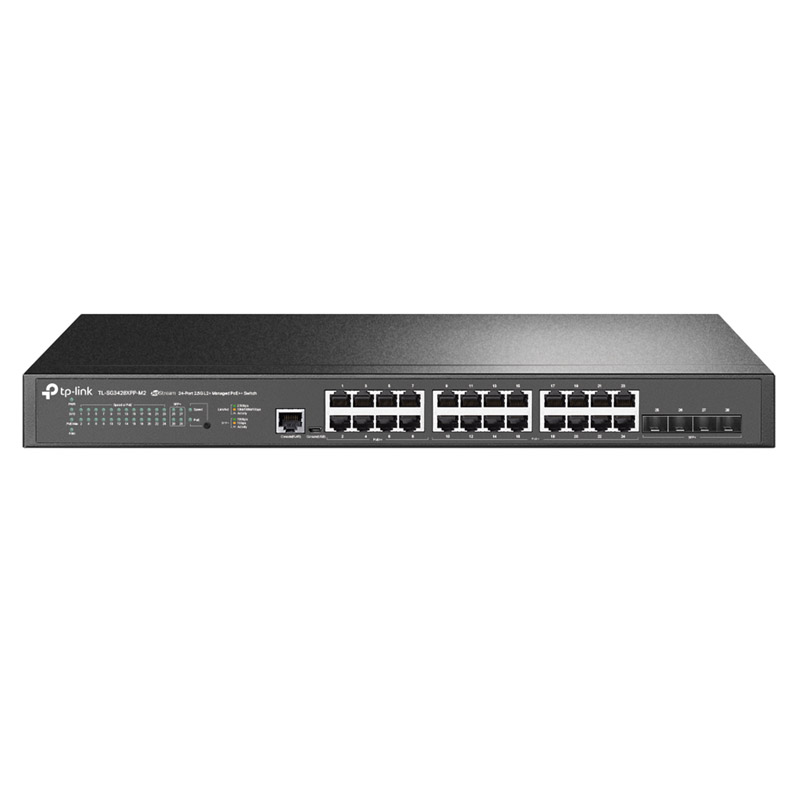

Omada SG3428XPP-M2 Access Pro 24-Port 2.5G and 4-Port 10GE SFP+ Switch with 24-Port PoE++

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

Omada SG3428XPP-M2 Omada SDN 24 Port PoE+ 2.5GbE Managed Switch.

Software Defined Networking (SDN) with Cloud Access

Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and a highly scalable network controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, and offices.

Zero-Touch Provisioning for Efficient Deployment

Omada zero-touch provisioning allows remotely deployment and configuration of multi-site networks, so there’s no need to send out an engineer for on-site configuration. The Omada Cloud ensures efficient deployment with lower costs.

Features

24× 2.5G PoE++ ports (Max 90 W per port)
4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
770 W total PoE budget
Centralized cloud management via the web or the Omada app
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology

Details
Manufacturer's Code	SG3428XPP-M2
Console Port	1 RJ45 Console Port; 1 Micro-USB Console Port
Flash	32 MB
DRAM	256 MB
Port Standard	IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3bz:2.5GBASE-T Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber); IEEE 802.3ae: 10 Gigabit Ethernet over fiber
PoE Standard	802.3af/at/bt, support perpetual PoE and fast PoE
PoE Ports	24 (up to 90 W PoE per Port)
PoE Power Budget	770 W
Switching Capacity	200 Gbps
Packet Forwarding Rate	148.80 Mpps
MAC Address Table	32K
Packet Buffer	16 Mbit
Transmission Method	Store and Forward
Number of IP Interfaces	32
Number of Static Routers	48 (IPv4, IPv6)
Jumbo Frame	9 KB
Power Supply	100-240 V~ 50/60 Hz
Max Power Consumption	900.2 W (110 V/60 Hz @ 25 °C) (with 770 W PD connected); 946.8 W (220 V/50 Hz @ 25 °C) (with 770 W PD connected)
Standby Power Consumption	37.0 W max @ 110V/60Hz 25 °C; 36.8 W max @ 220V/50Hz 25 °C
Max Heat Dissipation	3069.68 BTU/hr (110 V/60 Hz @ 25 °C) (with 770 W PD connected); 3228.59 BTU/hr (220 V/50 Hz @ 25 °C) (with 770 W PD connected)
Fan Quantity	3
Noise	Max 59.7 dBA @ 1 m (100% load, 45 °C ambient); 52.7 dBA @ 1m (100% load, 25°C ambient); Typical 44.6 dBA @ 1 m (100% system load, 616 W PoE load, 25°C ambient); Min 38.7 dBA @ 1 m (100% system load, PoE load <450 W, 25°C ambient)
Surge Protection	Service port: ±6 kV in common mode; Power port: ±6 kV in differential mode; ±6 kV in common mode
ESD Protection	Air: ±15 kV, Contact: ±8 kV
MTBF	474958 h @ 25 °C
Dimensions	440 × 330 × 44 mm
Net Weight	5.20 kg
Installation	Rack Mountable
Operating Temperature	-5 °C to 45 °C
Storage Temperature	-40 °C to 70 °C
Operation Humidity	10% to 90% RH, non-condensing
Storage Humidity	5% to 90% RH, non-condensing
Certification	CE, FCC, RoHS
SDN Support	Support Omada Hardware Controller; Software Controller; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule
