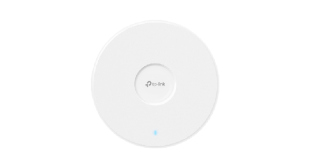

Omada EAP783 BE22000 Ceiling Mount Tri-Band WiFi 7 Access Point
Features
- Next-Gen Wi-Fi 7
- Wi-Fi Speeds up to 19 Gbps
- Multi-Link Operation (MLO)
- 2× 10GbE Ports
- 802.3bt PoE
- Auto Channel Selection and Power Adjustment
- Centralised Cloud Management
- Omada Mesh Technology
| Details | |
|---|---|
| Manufacturer's Code | EAP783 |
| Interface | 2× 10G Ethernet Ports (20G Aggregation Speed) |
| Button | Reset |
| Power Supply | 802.3bt PoE++, 12V DC (Power adapter is not included) |
| Maximum Power Consumption | 39W |
| Dimensions ( W x D x H ) | 280 x 280 x 46.5 mm |
| Antenna Gain | 2.4 GHz @ 4 dBi, 5 GHz @ 5.5 dBi, 6 GHz @ 5 dBi |
| Bluetooth | Yes |
| Coverage | 200m² |
| Concurrent Clients | 760+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Maximum Tx Power | 20 dBm (2.4 GHz, EIRP), 30 dBm (5 GHz, EIRP), 23 dBm (6 GHz EIRP) |
| Weight | 1384.6g |
| Operating Temperature | 0 °C–40 °C |
| Storage Temperature | -40 °C–70 °C |
| Operating Humidity | 10%–90% non-condensing |
| Storage Humidity | 5%–90% non-condensing |
| Details | |
|---|---|
| Power Injector | Not Included |
| Mounting | Ceiling / Wall Mounting (Kits Included) |
1Gbps
Wi-Fi 7 , Bluetooth
RJ45
2.4GHz , 5GHz , 6-38GHz
POE (802.3bt)
