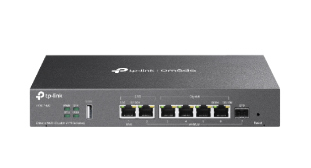

Omada ER707-M2 Multi-Gigabit VPN Router
Features
- 2× 2.5 Gbps RJ45 ports (1× WAN, 1× WAN/LAN)
- 5× Gigabit WAN/LAN ports (1× SFP, 4× RJ45)
- Load Balancing on up to 6 WAN ports increases the utilisation rate of multi-line broadband
- 1× USB port (Supports USB storage, and LTE backup with LTE dongle)
- High-security SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralised cloud management via the web or the Omada app
- DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
- Rackmount, Desktop, or Wall Mount
| Details | |
|---|---|
| Product code | ER707-M2 |
| Interface | 1× 2.5G RJ45 WAN Port, 1× 2.5G RJ45 WAN/LAN Port, 1× Gigabit SFP WAN/LAN Port, 4× Gigabit RJ45 WAN/LAN Ports, 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle) |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | WEB Group Filtering, URL Filtering, Web Security |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 12V/1.5A Adapter |
| Flash | 128MB NAND |
| DRAM | 1 GB DDR4 |
| Dimensions ( W x D x H ) | 226 × 131 × 35 mm |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Rackmount, Desktop, or Wall Mount |
| Maximum Power Consumption | 14.2 W (with USB2.0 connected), 7.1 W (without USB 2.0 connected) |
| WireGuard VPN Throughput | 343Mbps |
| Certification | CE, FCC, RoHS |
| Operating Temperature | 0–40 ℃ |
| Storage Temperature | -40–70 ℃ |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% non-condensing |
| Details | |
|---|---|
| Power Supply | 12V/1.5A Adapter Included |
| Mounting | Desk and Rack Mount kits included |
Omada
1Gbps , 10Gbps
RJ45 , SFP , USB
