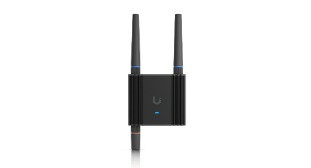

Ubiquiti UniFi Mobile Router Ultra Ultra-compact managed LTE Mobile Router for IoT Applications

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

Ubiquiti UniFi Mobile Router Ultra is an ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.

The UMR series is a standalone mobile router, manageable via WiFi, Ethernet, or remotely with an optional Mobility Cloud subscription (mobility.ui.com), no UniFi Console required.

Power adapter and cable not included; please use a 10W USB-C or ATX power supply.

Features

Site-to-site VPN and VPN client routing
(2) FE RJ45 ports
Automatic failover among LTE, wired WAN and WiFi
Powered using USB Type-C or 4-pin DC power socket
Wall and DIN rail mount options
Optional Mobility Cloud Subscription
WiFi 4 single chain 2.4 GHz radio

Details
Manufacturer's Code	UMR-Ultra
Dimensions Without Antennas	84 x 82 x 26 mm
Dimensions With antennas	193.5 x 82 x 26 mm
Weight	Device: 200 g, DIN rail/wall mounts: 20 g
Enclosure Material	Polycarbonate, aluminum alloy
Mount Material	Polycarbonate
Networking Interface	(2) FE RJ45 ports, LTE Category 4 radio, WiFi 4
Power Supply	USB Type-C (5V DC/2A), 4-pin ATX DC power socket (9—30V DC)
Maximum Power Consumption	5.7W
SIM	nano SIM
LTE Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B34, B38, B39, B40, B41
LTE throughput Speed	Download 150 Mbps / Upload 50 Mbps
WiFi Standards	WiFi 4, 2.4 GHz, 20/40 MHz
Maximum WiFi TX Power	17 dBm
Antenna SMA Ports	(1) Mobile 1: SMA female connector, supports 1Rx only, (1) Mobile 2: SMA female connector, supports 1Tx and 1Rx, (1) WiFi: RP-SMA female connector
External Antennas	(2) Mobile/LTE antennas with SMA male connectors, (1) WiFi antenna with RP-SMA male connector, (1) GPS
Mounting	DIN rail/wall mount (Included)
Ambient Operating Temperature	-30 to 70° C
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®
