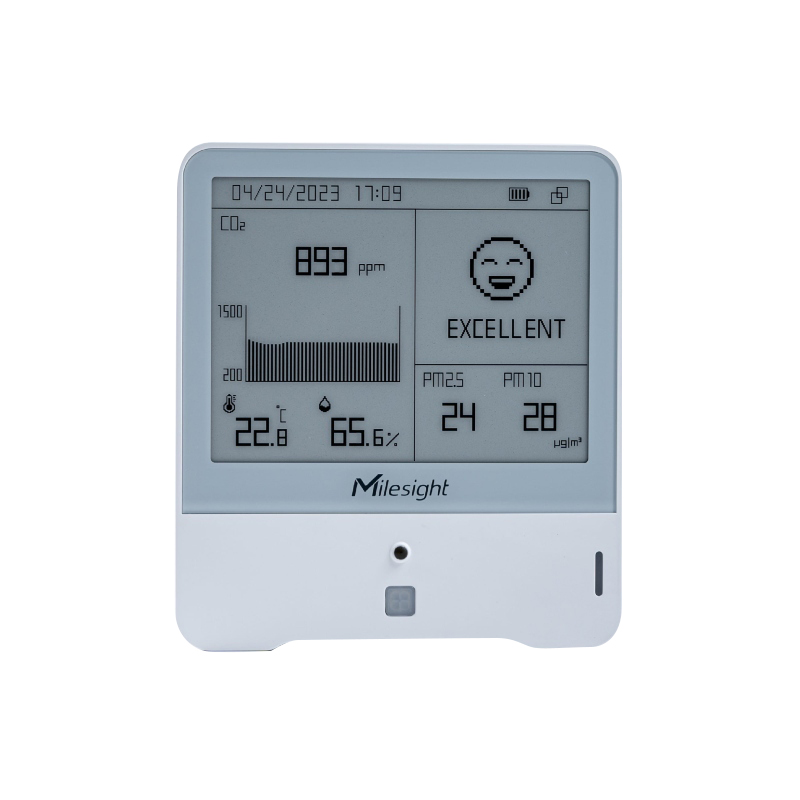

The Milesight AM308-915M is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity, light, CO2 concentration, HCHO level, TVOC, barometric pressure, PM2.5, PM10 and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. AM300 series is widely used for business offices, stores, classrooms, hospitals, homes, etc.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Integrated with multiple sensors: humidity, temperature, CO2, light, barometric pressure,
- Multiple display modes and clear emoticon to easily understand the comfort levels via screen
- Equipped with traffic LED and buzzer to indicate device status and threshold alarms
- Support more than 20,000 data records store locally
- Compliant with standard LoRaWAN® gateways and network servers
- Indoor Ambiance Sensor (Temp, Hum, Light, Motion, CO2, TVOC, Pressure, PM2.5, PM10)
- Perfect device for Environmental Monitoring for Business, Education and Homes
| Details | |
|---|---|
| Model | AM307-915M |
| Frequency | AU915 or AS923 switchable |
| Tx Power | 22dBm |
| Sensitivity | -137dBm @300bps |
| Work Mode | OTAA/ABP Class A |
| Temperature Range | Digital CMOSens® technology (MEMS) -20°C - 60°C, Accuracy ± 1°C, Resolution 0.1°C |
| Humidity | Digital CMOSens® technology (MEMS), Range 0% - 100% RH, Accuracy ± 2%, Resolution 0.5% RH |
| Motion | Passive infrared (PIR), Detection Range 80 ° Horizontal, 55 ° Vertical, Range 5 m, Status Vacant/Occupied |
| Light | Photodiode, Range 0-60000 Lux (display as 6 levels, 0-5) |
| TVOC | MOX (MEMS), Range |
| Barometric Pressure | Piezoresistive absolute pressure sensor (MEMS), Range 260 - 1260 hPa, Accuracy ±0.5 hPa, Resolution 0.1 hPa |
| Carbon Dioxide (CO2) | Nondispersive Infrared (NDIR), Range 400 - 5000 ppm, Accuracy |
| PM2.5,PM10 Range | Laser Scattering, Range 0 - 1000 μg/m3, Accuracy |
| Display & Configuration | 4.2-inch Black & White E-Ink Screen |
| Button | 1 × Power Button + 1 × Reset Button |
| LED & Buzzer | 1 × Traffic Light Status Indicator + 1 × Buzzer |
| Configuration | 1. Mobile App via NFC, 2. PC software via NFC or USB Type-C port |
| Power Supply | 1. 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries, 2. 5V/1A by Type-C Port |
| Battery Life4 (10 min interval) | Over 1 Year |
| Operating Temperature | -20°C - 60°C (E-Ink Screen: 0°C - 40°C) |
| Relative Humidity | 10% - 90% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in) |
| Installation | 3M Tape Mounting, Wall Screw Mounting, 86 Box Mounting |
| Regulatory | CE, FCC |
| Environmental | RoHS |
| Details | |
|---|---|
| Contains | 1 x AM308, Mounting screws, warranty, QSG. 4× ER14505Li-SOCl2 Batteries |
LoRAWAN , NFC
Ambient , Gas/Odour , Movement , Radiation
600-999MHz
