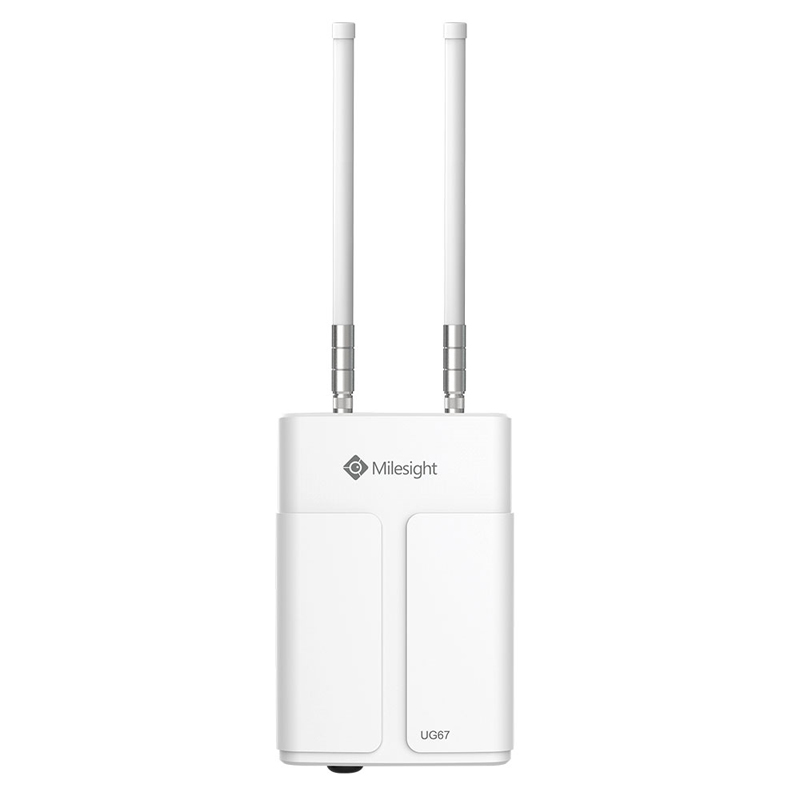

The Milesight UG67 is a robust 8-channel outdoor LoRaWAN IoT gateway. Adopting the SX1302 LoRa chip and high-performance quad-core CPU, the UG67 supports connections with more than 2000 IoT sensors. The flagship LoRaWAN IoT gateway used in New Zealand.
UG67 has line of sight of 10km+ and an IP67 waterproof case, which is ideally suited to smart agriculture, smart metering, smart city and many other outdoor applications. The UG67 supports multiple back-haul options with Ethernet or Wi-Fi and also has integrated mainstream network servers (such as TTN, ChirpStack, etc.) and its own built-in network server.
With the addition of the latest Semtech LoRa Chip the SX1302, the UG67 can handle a higher amount of traffic with lower power consumption. The SX1302 can also support SF5 and SF6.
Please Note this Gateway does not include External LoRa Antennas we normally recommend the ANT-281 for normal use or the ANT-282 for a high Gain antenna option. You will need a N-Male to N-Male Coax Cable to Connect these Antennas to the Gateway, a good option for this would be the P-31 (100cm Lead) .
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
UG67 has line of sight of 10km+ and an IP67 waterproof case, which is ideally suited to smart agriculture, smart metering, smart city and many other outdoor applications. The UG67 supports multiple back-haul options with Ethernet or Wi-Fi and also has integrated mainstream network servers (such as TTN, ChirpStack, etc.) and its own built-in network server.
With the addition of the latest Semtech LoRa Chip the SX1302, the UG67 can handle a higher amount of traffic with lower power consumption. The SX1302 can also support SF5 and SF6.
Please Note this Gateway does not include External LoRa Antennas we normally recommend the ANT-281 for normal use or the ANT-282 for a high Gain antenna option. You will need a N-Male to N-Male Coax Cable to Connect these Antennas to the Gateway, a good option for this would be the P-31 (100cm Lead) .
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Quad-core industrial processor
- Equipped with the latest Semtech SX1302 chip
- 8 half/full-duplex channels
- IP67 waterproof enclosure
- Wall or pole mounting
- PoE capable
- Capacitor for sending alarms in case of power failure
- Supports Ethernet and WiFi backhaul
- Devicehub and Milesight IoT Cloud ready
- Compatible with mainstream network servers
- Embedded Python SDK
- Integrated LoRaWAN Antenna, external antennas sold separately
- Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding tool
| Details | |
|---|---|
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN® Antennas | Fully Integrated Internal Antenna, External antennas sold separately |
| Channels | 8 |
| Frequency Band | US915/AU915/KR920/AS923 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class C |
| Ethernet Port | 1 × RJ45 (PoE PD Supported) |
| Physical Layer | 10/100/1000 Base-T (IEEE 802.3) |
| Mode | Full or Half Duplex (Auto-Sensing) |
| LoRaWAN RF Connectors | N-Female |
| Wi-Fi Antenna | Fully Integrated Internal Antenna |
| Standards | IEEE 802.11 b/g/n |
| Tx Power | 13-18dbm |
| GPS Antenna | Internal Antenna |
| Sensitivity | -167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition |
| Position Accuracy | <2.5 m CEP |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter |
| Management | Web, CLI, On-demand dial up, DeviceHub, Milesight IoT Cloud |
| Reliability | WAN Failover |
| Power Supply | 802.3 af PoE input or 12 VDC with M12 Connector |
| Consumption | Typical 3.6 W, Max 4.8 W |
| Ingress Protection | IP67 |
| Dimensions | 250 x 172 x 92 mm |
| Mounting | Wall or Pole Mounting |
| Built-in | Watchdog, RTC, Timer |
| Certification | CE, FCC |
| Operating Temperature | -40°C to +70°C (-40? to +158?) |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77? |
| Details | |
|---|---|
| Power Supply | 55V 15 Watt PoE Power Supply included |
| External Antennas | Not Included |
600-999MHz
Wi-Fi 4 , GPS/GNSS , LoRAWAN
1Gbps
N-Type , RJ45
PoE (802.3af/at)
Milesight Cloud , Scopious IoT
