Milesight LoRaWAN AU915/AS923 9 in 1 Indoor Ambience Monitoring IoT Sensor (O3 Version)

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

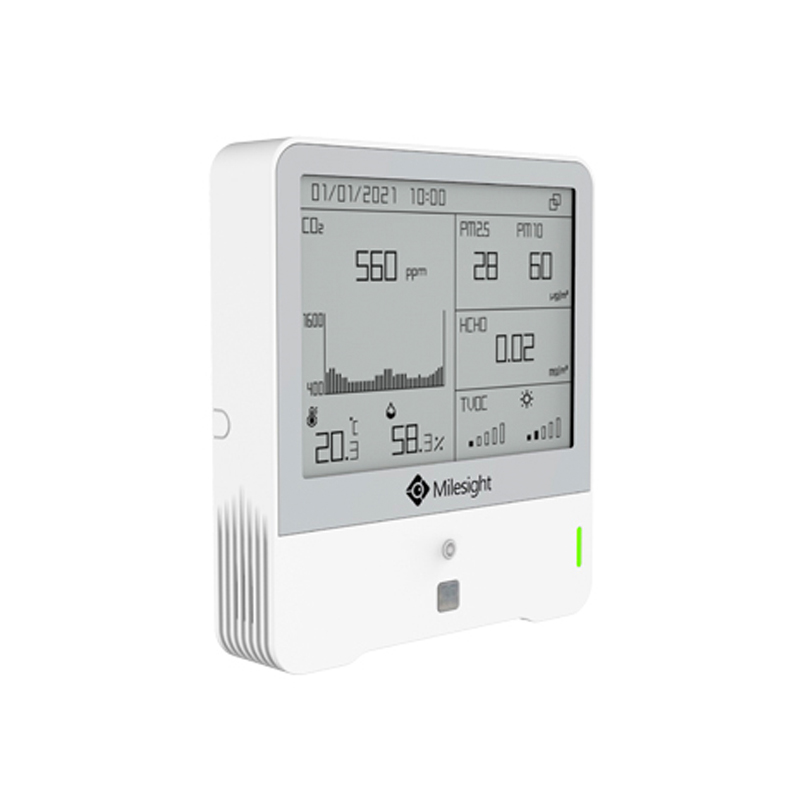

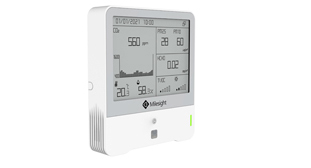

Milesight LoRaWAN AU915/AS923 9 in 1 Indoor Ambience Monitoring IoT Sensor (O3 Version). The Milesight AM319 is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity, light, CO2 concentration, O3 level, TVOC, barometric pressure, PM2.5, PM10 and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. AM300 series is widely used for business offices, stores, classrooms, hospitals, homes, etc.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!

Features

Integrated with multiple sensors: humidity, temperature, CO2, light, barometric pressure, PM2.5, PM10, etc.
Multiple display modes and clear emoticon to easily understand the comfort levels via screen
Equipped with traffic LED and buzzer to indicate device status and threshold alarms
Support more than 20,000 data records store locally
Compliant with standard LoRaWAN® gateways and network servers
Perfect device for Environmental Monitoring for Business, Education and Homes

Details
Model	AM319-O3-915M
Frequency	AU915 or AS923
Tx Power	22dBm
Sensitivity	-137dBm @300bps
Work Mode	Class C
Temperature Range	-40°C - 85°C
Accuracy	± 1°C
Resolution	0.1°C
Humidity Range	0% - 100% RH
Accuracy	± 3%
Resolution	0.5% RH
PIR Detection Area	80 ° Horizontal, 55 ° Vertical
Detection Range	5 m
Status	Vacant/Occupied
Light Range	0-60000 Lux (display as 6 levels, 0-5)
TVOC Range	0-500 (IAQ Index)
Accuracy	±15 %
Barometric Pressure Range	300 - 1100 hPa (-40°C - 85°C)
Accuracy	±0.6 hPa
Resolution	0.1 hPa
Carbon Dioxide (CO2) Range	400 - 2000 ppm
Accuracy	±50 ppm or ±5 % of reading
Resolution	1 ppm
PM2.5 & PM10 Range	0 - 1000 μg/m3
Accuracy	0-100(±10μg/m3), 100-1000(±10 %)
Resolution	1 μg/m3
Ozone(O3) Range	0 - 10 ppm
Accuracy	±5 % FS
Resolution	0.01 ppm
Display	4.2-inch Black & White E-Ink Screen
Buttons	1 × Power Button + 1 × Reset Button
LED & Buzzer	1 × Traffic Light Status Indicator + 1 × Buzzer
Power Supply	5V/1A by Type-C Port
Operating Temperature	-20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity	10% - 90% (non-condensing)
Ingress Protection	IP30
Dimension	100.8 × 114 × 22 mm
Installation	Wall Mounting
