Description
Specifications
Resources
Package Contents

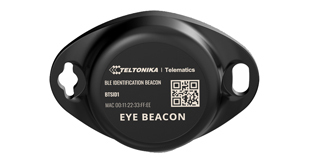

Teltonika Bluetooth Eye Beacon with ID, LED, Magnet detection and Hibernate. The Teltonika certified Bluetooth Low Energy ID Beacon model, The Eye Sensor has a robust lightweight casing and a long-lifetime battery. This model is designed for low-cost, fast and easy configuration and integration to save precious time, resources to ensure timely monitoring and accountability. Perfect for traceability use cases, delivery tracking, monitoring of various movable objects in logistics (trailers, containers), agriculture (tractor attachments), and constructions (tools and inventory). The Sensor data makes it especially suitable for cold chain refrigerator use cases. The built-in accelerometer can detect item movement or fall events. Magnet detection can be used for wireless open/close detection and notifications such as trailer door events, etc. The EYE sensor supports iBeacon and Eddystone protocols and is fully compatible with the Teltonika firmware platform which provides extended functionality. Configure, scan, and update anytime anywhere with the dedicated Teltonika mobile app.
Features
- 620 mAh capacity, 10+ years long battery life
- IP67 protection casing with handy two mounting points
- Easy to use mobile app for configuration, data scanning, and updating
- Up to 80 metres connectivity range via Bluetooth
- EYE Beacons (SPQ: 10) with hibernate mode (device OFF from factory)
| Details | |
|---|---|
| Manufacturers Code | BTSID17RE502 |
| Beacon ID | Yes |
| Sensors | Magnet detection |
| Scenarios | Tool tracking, RSSI indoor tracking, Equipment tracking, Mobile objects tracking, Medical equipment tracking, Smart agriculture, Smart manufacturing |
| Sleep mode | Hibernate |
| Configuration and firmware update | EYE APP |
| Microcontroller | ST Microelectronics BlueNRG-2 |
| Bluetooth operating frequency | 2.402 - 2.480 GHz |
| Bluetooth antenna gain (peak) | 1.2dBi |
| Bluetooth | Bluetooth® 4.2 |
| Range | 80 m |
| Transmission power level | Up to 8 dBm |
| Sensitivity | -88 dBm |
| Type | EYE Beacons (SPQ: 10) with hibernate mode (device OFF from factory) |
| Power Model | CR2450 |
| Type | Lithium, Manganese Dioxide (Li/MnO2) |
| Capacity | 600 mAh |
| Replaceable | No |
| Battery life | Up to 4 years (Tx=2dBm; interval 3s), Up to 8 years, (Tx=2 dBm; interval: 5s), DEFAULT, Up to 10 years (Tx=2dBm; interval 10s) |
| Dimensions | 56,6 x 38 x 13 mm (L x W x H) |
| Weight | 18 g |
| Ingress protection | IP67 |
| Mounting | Two holes to screw/leash/strip, tape |
| Marking | Available branding customisation upon request |
| Humidity (non-condensing) | From 0% to 100% |
| Operational temperature | -20°C / +60°C (-4°F / +140°F) |
| iBeacon | Yes* EYE APP on iOS doesn't show devices with iBeacon protocol |
| Eddystone | yes |
| Sensors (custom) | Yes |
| Certificates | E-Mark (EU), FCC (USA), CE/RED (EU), RoHS (EU), REACH (EU), Anatel, IP rating, SIRIM QAS, SDPPI POSTEL |
| Details | |
|---|---|
| Contents | 1 x Teltonika EYE Beacon |
