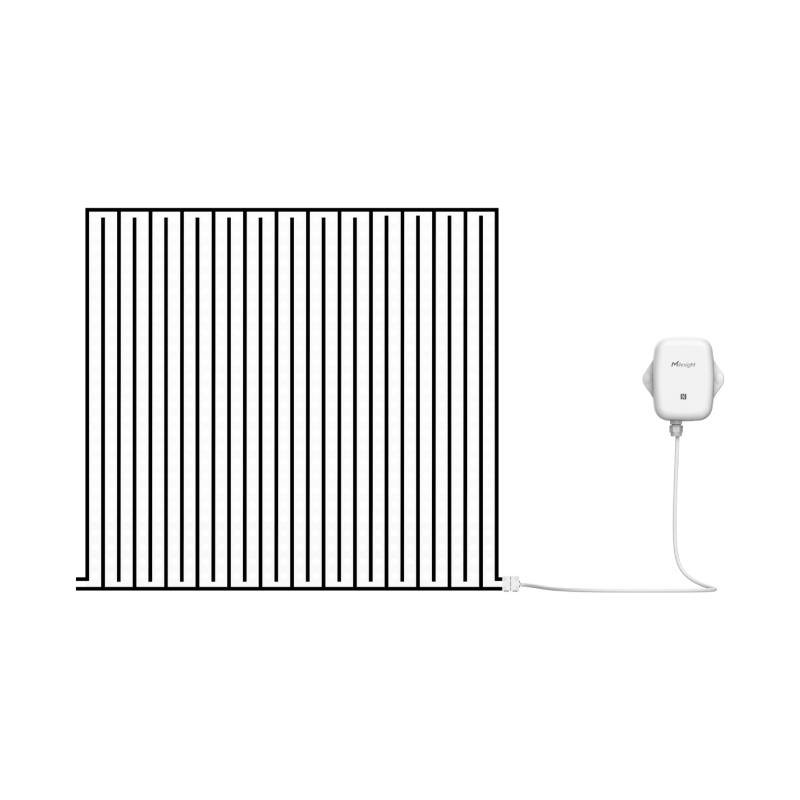

Milesight LoRaWAN AU915/AS923 Membrane Leak Sensor. The EM300-MLD is an innovative leak sensor that incorporates a flexible printed membrane. This design enables precise detection and customized coverage in a compact form factor, making it suitable for various applications. With a single embedded battery, the EM300-MLD offers a long operational life of up to 10 years, extendable to two batteries if desired. Its high IP67 protection and durable construction ensures reliability and adaptability in harsh environments. With easy configuration and wireless detection, the EM300-MLD facilitates simple deployment and connectivity.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
Consult with Scopious IoT today!
Features
- Detects the presence of liquids by a flexible printed membrane for covering a larger area
- Equipped with a high-quality printed membrane that can be reused and customized
- IP67 Ingress protection
- A built-in 4000mAh replaceable battery that can work for 10 years without replacement
- Equipped with NFC for easy configuration
- Supports Milesight D2D
| Details | |
|---|---|
| SKU | EM300-MLD-915M |
| Wireless Transmission Technology | LoRaWAN® |
| Frequency | AU915/AS923 |
| Tx Power | 20dBm |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Liquid Detection Type | Conductive Liquid (Water, Weak Acid, Weak Base, etc.) |
| Trigger Media | 400 × 400 × 0.25 mm Printed Leakage-Detecting Film(The size can be customizable) |
| Trigger Condition | Soaking Liquid Length > 1.5 cm |
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | NFC Configuration via Mobile App |
| Advanced Feature | Milesight D2D Controller, Data Storage, Data Retransmission |
| Cable Length | 1000 mm (Customizable) |
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCL2 Battery (Extendable to 2 Batteries) |
| Battery Life | Up to 10 Years (One hour Leakage per Day, 25°C) |
| Operating Temperature | -30°C~70°C |
| Relative Humidity | 0% to 95% (non-condensing) |
| Color & Material | White Flame, ABS + PC (Retardant) |
| Ingress Protection | IP67 |
| Dimension | 105.6 × 85.3 × 27 mm |
| Installation | Wall Screw Mounting, 3M |
| Details | |
|---|---|
| Contains | Sensor, QSG, Warranty Card |
Milesight Cloud , Scopious IoT
LoRAWAN , NFC
Liquid
600-999MHz
