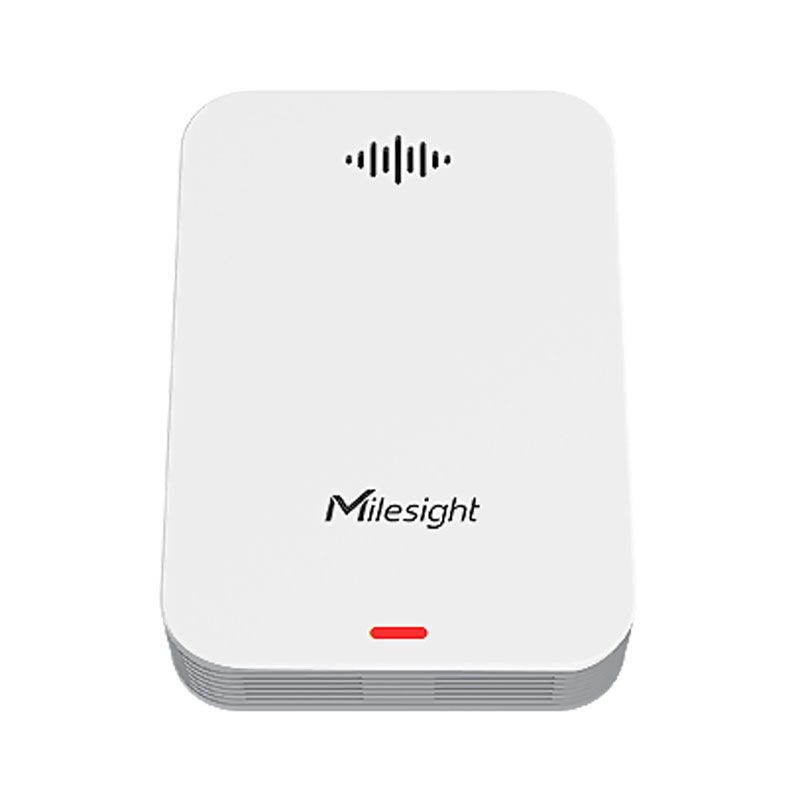

Milesight GS301 AU915/AS923 LoRaWAN IoT Bathroom Gas/Odour Detector

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

The Milesight GS301 is a 4-in-1 LoRaWAN US915/AU915/AS923 IoT bathroom odour detector, used to detect ammonia (NH3) and hydrogen sulfide (H2S) gas according to their electrochemical principles. The Milesight GS301 is also able to detect temperature and humidity to allow users to be fully aware of the environment of bathrooms. When the NH3 or H2S gas concentration reaches the preset threshold, the detector will trigger both LED light alarm and buzzer to notify people to ventilate the area, which is an important part of smart bathroom solutions. Apart from local alarms, GS301 can also report the sensor data and alarm messages remotely by the use of LoRaWAN® technology. Integrating with Milesight LoRaWAN® gateways and Milesight IoT's Cloud solution, users can monitor all sensor data and control the device remotely and easily. Moreover, the GS301 supports Milesight D2D (Device 2 Device) to enable ultra-low latency control without gateways. This sensor is also compatible with Scopious IoT.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!

Features

Built-in high accuracy electrochemical gas detection sensor with more than a 3-year life expectancy
Supports LoRaWAN IoT US915/AU915/AS923-1&2&3&4
Built-in multiple sensors including NH3, H2S, temperature and humidity
Built-in batteries to achieve wireless power supply and decrease the installation cost
Equipped with buzzer and LED indicator to indicate threshold alarms
Damp proof coating inside the device to ensure device will work well in various conditions
Supports Milesight's D2D protocol to enable ultra-low latency and direct ventilation control without gateways
Built-in NFC for easy configuration
Compatible with standard LoRaWAN® gateways and network servers

Details
Model	GS301-915M
Protocol	LoRaWAN, Milesight D2D
Frequency	US915/AU915/AS923-1&2&3&4
Tx Power	22 dBm
Sensitivity	-137dBm
Mode	OTAA/ABP Class A
Ammonia (NH3) Detection Principle	Solid Polymer Electrochemical
Range	0 ~ 10 ppm
Accuracy	± 5% (-40 - 35°C)
Long-term Stability	1 % accuracy drift per month
Resolution	0.01 ppm
Hydrogen Sulfide (H2S) Detection Principle	Solid Polymer Electrochemical
Range	0-5 ppm
Accuracy	± 5% (-40 - 35°C)
Long-term Stability	1 % accuracy drift per month
Resolution	0.01 ppm
Temperature Range	-40 - 85°C
Accuracy	± 0.2°C
Resolution	0.01°C
Humidity Range	0 - 100%RH
Accuracy	± 2%
Resolution	0.5%RH
LED & Buzzer	1 × Status/Alarm Indicator + 1 × Buzzer
Button	1 × Reset/Reboot Button
Configuration	Mobile App via NFC
Advanced Feature	Milesight D2D Controller
Power Supply	4 x 4000 mAh ER18505 Li-SOCl2 Replaceable Batteries
Sensor Life	3 Years
Battery Life	Around 3 Years (10 min interval)
Operating Temperature	-40°C - 55°C
Relative Humidity	0% - 95% (non-condensing)
Ingress Protection	IP30
Dimension	120 × 85 × 32.5 mm
Material & Color	PC+ABS (Flame Retardant), White
Installation Wall	Mounting
