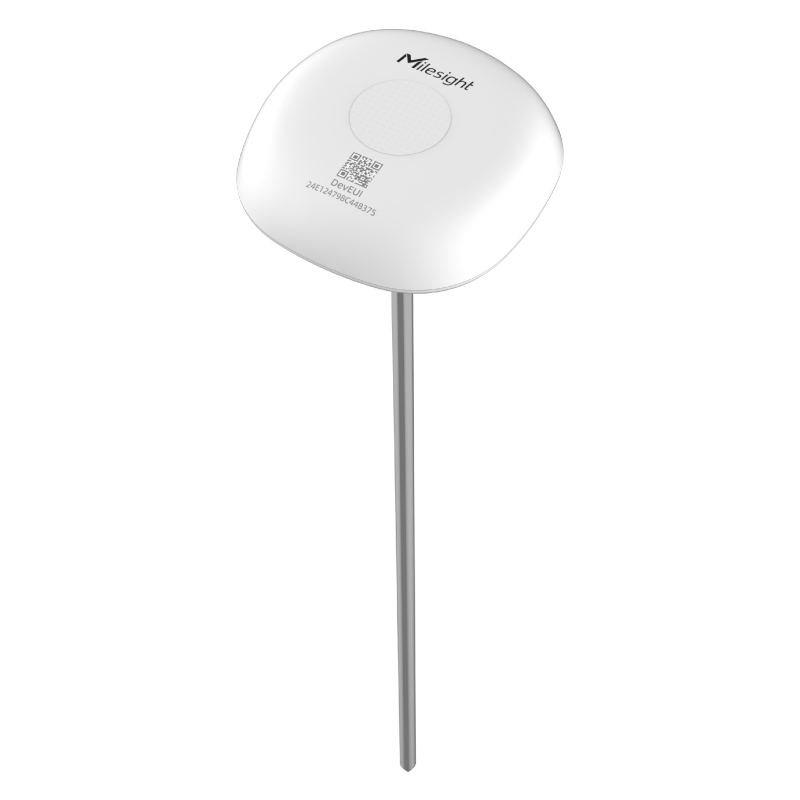

Milesight TS101 LoRaWAN AU915/AS923 Insertion Temperature IoT Sensor. The Milesight TS101 is an all-in-one insertion temperature sensor with an integrated transmitter. It is equipped with an advanced measuring unit that provides a wide temperature measuring range. With IP67 and IK10 ratings, the TS101 sensor is suitable for monitoring the inner temperature of Tobacco, Hay, Silage or grain stacks. It can also be applied in other warehousing scenarios which require inner temperature detection with high efficiency. With its low power consumption technology, the TS101 can work for up to 10 years with a 4,000mAh battery. Combined with Milesight LoRaWAN® gateways, Milesight IoT Cloud or the Scopious Network, users can manage all sensor data remotely and visually.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!

Features

Equipped with highly accurate and stable DS18B20 temperature sensor chip with high resolution
Adopt food-grade stainless-steel probe and shell material for efficient and safe detection
Store up to 1200 sets of data locally and support data retrievability and retransmission
IP67 and IK10 rated and phosphine corrosion-resistant for harsh environment
Built-in 4000 mAh replaceable battery and works for up to 10 years without replacement
Integrated and compact design for wireless deployment
Built-in NFC for easy configuration
Compatible with standard LoRaWAN® gateways and network servers
Quick and easy management with Milesight IoT Cloud solution

Details
Model	TS101-915M
Frequency	AU915 or AS923 switchable
Tx Power	20dBm
Sensitivity	-137dBm @300bps
Work Mode	Class A
Temperature Detection Range	-30°C - 75°C
Accuracy	± 0.5°C
Resolution	0.1°C
Power On/Off	NFC or Internal Power Button
Configuration	NFC Configuration via Mobile App
Advanced Features	Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm
Power Supply	1 × 4000 mAh ER18505 Li-SOCl2 Replaceable Battery
Battery Life (Estimated)	10 Years (1 Hour Report Interval, 25°C)
Operating Temperature	-30°C ~ +70°C
Relative Humidity	0 ~ 95% (Non-condensing)
Transceiver Material & Colour	ABS+PC(Food-Grade, Phosphine Corrosion resistant), White
Sensor Probe Material & Colour	316 Stainless Steel (Food-Grade, Phosphine CorrosionResistant) , Silver Grey
Ingress Protection	IP67
Impact Protection	IK10 (Transceiver)
Transceiver Dimension	92mm × 92mm × 26mm (3.62 × 3.62 × 1.02 in)
Sensor Probe Dimension	7mm × 400mm (0.28 × 15.75 in)
Installation	Insert Installation
