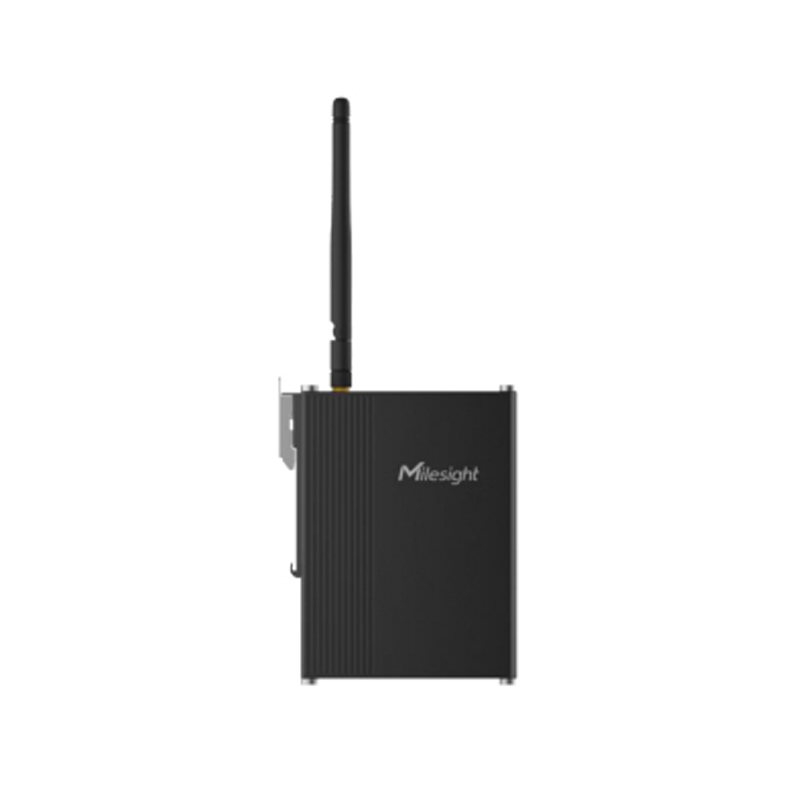

Milesight UC300 4G/LTE Cellular IoT Controller with Multiple I/O and Serial Interfaces

$475.00 +GST

22 In Stock

SKU: UC300-L05AU

Quantity	Price
1 - 4	$475.00
5 - 9	$391.88
10 - 19	$380.00
20+	$356.25

Data Sheet

Milesight UC300 4G IoT Controller with RS232, RS485, Modbus and Multiple I/O Interfaces

Warranty

Back to: Internet of Things (IoT)

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description
Reviews

Description

Specifications

Resources

Package Contents

Milesight UC300 4G IoT Cellular Controller with RS232, RS485, Modbus and Multiple I/O Interfaces. The Milesight UC300 series is an IoT controller used for remote control and data acquisition from diverse devices. It contains multiple I/O interfaces including analog input, digital input, relay output, serial port, PT100RTD input, which support remote device data transmission via LoRaWAN® or 3G/4G networks. The UC300 series also supports multiple trigger conditions and actions which can work autonomously even if the network drops. Combined with Milesight IoT Cloud solution, it can monitor and control remote devices via web server or mobile App easily. Adopting industrial design and IP30 metal case, the UC300 is widely used in indoor applications like smart factory, building automation, etc.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!

Features

Easy to connect with diverse wired devices through DIO/AI/RS232/RS485/PT100RTD input interfaces
Support 3G/4G wireless communication
Multiple triggering conditions and actions
Embedded watchdog for device working stability
Industrial metal case design with wide operating temperature range
Compliant with standard LoRaWAN® gateways and network servers
Quick and easy management with Milesight IoT Cloud solution
Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding tool

Details
Manufacturer's Code	UC300-L05AU
Technology	2G/3G/4G/LTE
Cellular Antenna Connector	1 × 50 Ω SMA Connector (Center PIN: SMA Female)
SIM Slot	1 (Micro SIM-3FF)
Application Mode	TCP/UDP/MQTT/AWS/Milesight IoT Cloud/SMS
Interface Type	3.5mm Terminal Block
IO Ports	4 × DI + 2 × DO
Digital Input	Opto-isolated Digital Inputs, 3-24VDC (pulse counter support)
Digital Output	SPDT Relay Contact Rating: 3A@DC Max: 30 V or AC Max: 250 VSerial Port
Ports	1 × RS232 + 1 × RS485
Baud Rate	1200~115200 bps
Protocol	Transparent (RS232), Modbus RTU (RS485)
Analog Input Ports	2 × 4~20 mA + 2 × 0~10 V
Resolution	12 bit
Analog Input (RTD) Ports	2 × PT100 RTD Input
Input Connections	2, 3-wire
Resolution	12 bit
Range	-200°C ~ 800°C
Configuration Port	1 × Type-C
LED Indicators	1 × System, 1 × ACT
Built-in	Watchdog, Timer
Power Connector	3.5 mm Terminal Block
Power Supply	5-24 VDC
Color & Material	Black, Metal
Ingress Protection	IP30
Operating Temperature	-20°C ~ 60°C (-4℉ to +140℉)
Relative Humidity	0% ~ 95% (non-condensing) at 25°C/77℉
Dimensions	93 × 70 × 22 mm
Installation	Desktop, Wall Mounting, DIN Rail Mounting
