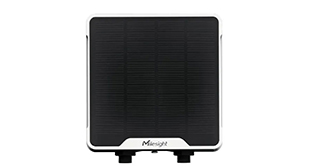

Milesight UC501 Solar Powered Cellular (NB-IoT/CAT-M1) IoT Controller with GPIO/AI/RS232/RS485

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

The Milesight UC501 is a Cellular based IoT controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on, which simplify the deployment and replacement of existing sensor networks.

The UC501 can be easily and quickly configured by NFC. For outdoor applications, it provides solar power supply and is equipped with an IP68-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments.

This sensor is perfect for multiple use cases including smart agriculture, smart industrial monitoring and smart cities. You can use this unit for retro-fitting existing sensors to send over Cellular, including gas, water or flow meter monitoring.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!

Features

Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485 interfaces
Long transmission distance up to 11km with line of sight
Waterproof design including IP67 case and M12 connectors
Solar powered with rechargable
Quick wireless configuration via NFC

Details
Manufacturer's Code	UC501-N03GL
Cellular Bands	Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85,Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
SIM Slot	1 x Nano SIM 4FF
Application Mode	TCP/UDP/MQTT/AWS
Sensitivity	-147dBm @300bps
Interface type	M12 A-Coded Male
IO Ports	2 x GPIO
Logic Level	Low: 0~0.9V, High: 2.5~3.3V
Work Mode	Digital input, digital output, pulse counter (only support on GPIO2)
Serial Port	1 × RS232 or RS485 (Switchable)
Baud Rate	300~230400 bps
Protocol	Transparent (RS232), Modbus RTU (RS485)
Analog Inputs	2 × Analog input
Resolution	12 bit
Input Range	4~20mA or 0~10V (Switchable)
SDI-12 Ports	1 × SDI-12
Protocol	SDI-12 V1.4, Transparent
Power Output	2 × 3.3 V, 2 × 5/9/12 V (Switchable)
Operating Temperature	-20°C to +60°C
Ingress Protection	IP68
Dimension	116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) (Connectors Excluded)
Power Connector	M12 A-Coded Male
Power Input	Rechargeable 4900 mAh battery with solar panel
Power Supply	Solar powered + 2*2550mAh battery backup + 5-24 VDC
Power On & Off	Cellular Version: Mobile App (via NFC), Power Button (Internal)
Configuration	Cellular Version: Mobile App (via NFC)
Mounting	Wall or Pole Mounting
