Ubiquiti UniFi Protect SuperLink Entry Sensor for Door and Window Monitoring (US Version)

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

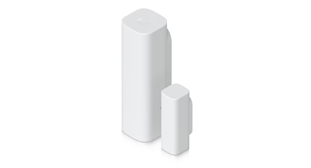

Ubiquiti UniFi Protect SuperLink Entry Sensor with up to 6-year battery life for monitoring door and window open/closed status.

Note. this is the US Model and requires a UP-Superlink-US or USL-Gateway-US.

Features

Compatible with UP-Superlink-US, USL-Gateway-US
US Model - Operating Frequency: 915.6–927.6 MHz
Long-distance and low-power connection
Adhesive and screw mount included
Lithium battery CR123A with up to 6-year battery life

Details
Manufacturer's Code	USL-Entry-US
Dimensions	Device: 75.5 x 23.5x 22.5 mm (3 x 0.93 x 0.89"), Magnet: 39 x 15.1 x 12.9 mm (1.5 x 0.6 x 0.5")
Mounting	Adhesive and screw mount
UniFi Application Suite	Protect
Connectivity	SuperLink (Proprietary)
Operating Frequency	US Model: 915.6–927.6 MHz
Antenna Gain	SuperLink 0 dBi
Max. TX Power	SuperLink 14 dBm
Max. Range	SuperLink 2 km (1.2 mi)
Sensor Features	Reed Switch
Max. Power Consumption	27.7mW
Supported Voltage Range	3V
Power Method	Lithium battery CR123A
Battery Life	Up to 6 years
Weight	Device: 41 g (1.4 oz), Magnet: 22 g (0.8 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Buttons	(1) Factory-reset, (1) Function button, (1) Tamper switch
LEDs	(1) Status: R/B/W, (1) Signal: B/R
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	FCC, IC, CE
NDAA Compliant	Yes
Application Requirements	Web Application: UniFi Protect, Mobile App: UniFi Protect iOS™ and Android™
