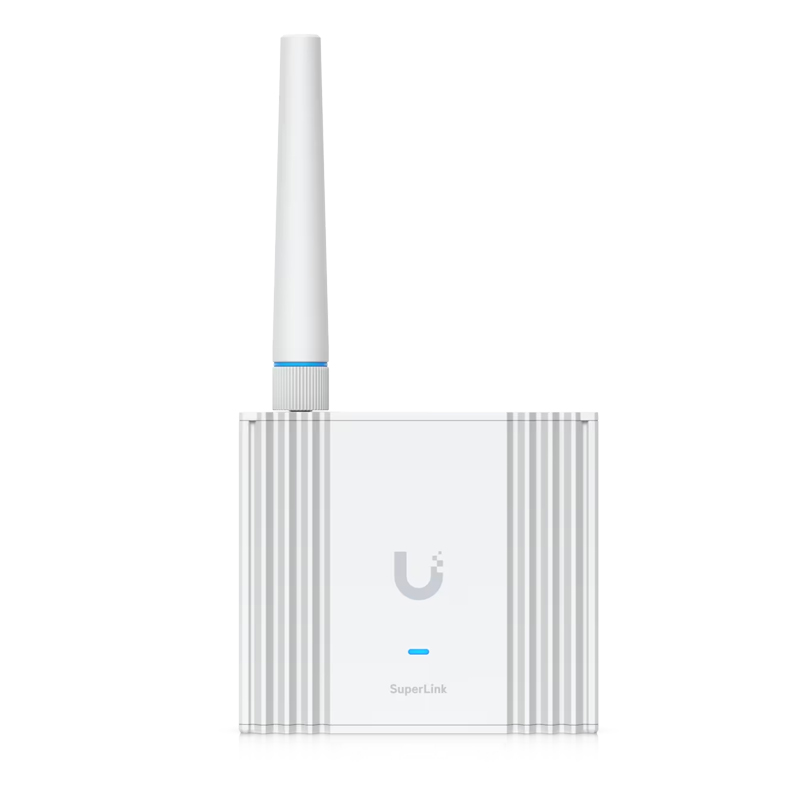

The Ubiquiti UniFi SuperLink is a proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.
Featuring the all-new groundbreaking wireless protocol, SuperLink. With ultra-low latency, impressive scalability, and multi-kilometer range, it sets a new standard for secure, reliable IoT connectivity.
Note. this is the US Model with Operating Frequency: 915.6–927.6 MHz.
Featuring the all-new groundbreaking wireless protocol, SuperLink. With ultra-low latency, impressive scalability, and multi-kilometer range, it sets a new standard for secure, reliable IoT connectivity.
Note. this is the US Model with Operating Frequency: 915.6–927.6 MHz.
Features
- 96 SuperLink clients supported with up to 2 km link range (line of sight)
- 7 UP-Sense (BLE) devices supported with improved long-range connectivity
- Powered using PoE or USB Type-C
- Wall and DIN Rail mount options for flexible deployment in residential or commercial environments
| Details | |
|---|---|
| Manufacturer's Code | USL-Gateway-US |
| Dimensions | With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1"), With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5"), With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
| Mounting | Wall and DIN rail mount |
| UniFi Application Suite | Protect |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Bluetooth® 5.2, SuperLink (Proprietary) |
| Operating Frequency | Bluetooth: 2400–2480 MHz, SuperLink US: 915.6–927.6 MHz |
| Antenna Gain | Bluetooth: 3 dBi, SuperLink: 2 dBi |
| Max. TX Power | Bluetooth: 10 dBm, SuperLink: 27 dBm |
| Max. Range | Bluetooth: Up to 100 m (328 ft), SuperLink: 2 km (1.2 mi) with clear line of sight |
| Max. Client Count | Bluetooth: 7, SuperLink: 96 |
| Max. Power Consumption | 3.4W |
| Power Method | PoE, USB Type-C, 5V, 1A (Optional) |
| Weight | 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| Buttons | (1) Factory reset |
| LEDs | (1) Status: B/W |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Application Requirements | Web Application: UniFi Protect, Mobile App: UniFi Protect iOS™ and Android™ |
| Details | |
|---|---|
| Power Supply | Not Included |
| Mounting | Wall, DIN Rail Mount Included |
UniFi
Bluetooth , Proprietary
RJ45 , USB
600-999MHz , 2.4GHz
PoE (802.3af/at)
