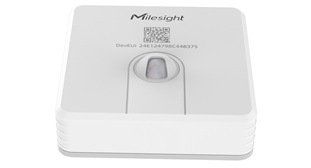

Milesight VS340-915M LoRaWAN Desk and Seat Occupancy IoT Sensor

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Supported Platforms

Description

Description

Specifications

Resources

Package Contents

The Milesight VS34x is an occupancy sensor designed to detect whether desks or seats in a workspace are occupied, allowing for better management and optimization of space usage. The standard version of the sensor VS340 uses PIR technology for detection.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!

Features

Achieve up to 95% accuracy with a high-precision PIR sensor
Support Milesight D2D protocol to enable ultra-low latency and directly control without
gateways
No image data is collected, free from privacy concerns
Functions well with standard AS923 LoRaWAN IoT gateways and network servers
V0 grade flame retardant material makes it adaptable to various scenarios, enhancing safety and reliability
Equipped with NFC for one-touch configuration, support card emulation mode
Compatible with Milesight IoT Cloud and Scopious IoT

Details
Manufacturer's Code	VS340-915M
Frequency	AU915/AS923
Tx Power	20dBm
Sensitivity	-137dBm @ 300bps
Mode	OTAA/ABP Class A
Technology	PIR
PIR Field of View	107° Horizontal, 107° Vertical (Standard PIR Cover)
Recognition Range	up to 1 meter
Recognition Rate	>95%
Buttons	1 × Reset Button (internal)
LED Indicators	1 × Status
Configuration	NFC Configuration via Mobile App
Advanced Feature	Milesight D2D Controller
Power Supply	1 x 4000 mAh ER18505 Li-SOCL2 Battery
Battery Life	Around 5 Years (100 Triggers per Day, 25°C)
Operating Temperature	-20°C ~ +60°C
Storage Temperature	-20°C ~ +60°C
Relative Humidity	0 ~ 95% (Non-condensing)
Colour	White (Black Optional)
Dimension	73 x 73 x 26 mm ( 2.87 x 2.87 x 1.02 in) (Without PIR Cover)
Weight	90g
Ingress Protection	IP30
Material	PC + ABS (Flame Retardant)
Installation	3M Tape Mounting, Wall or Desk Screw Mounting
