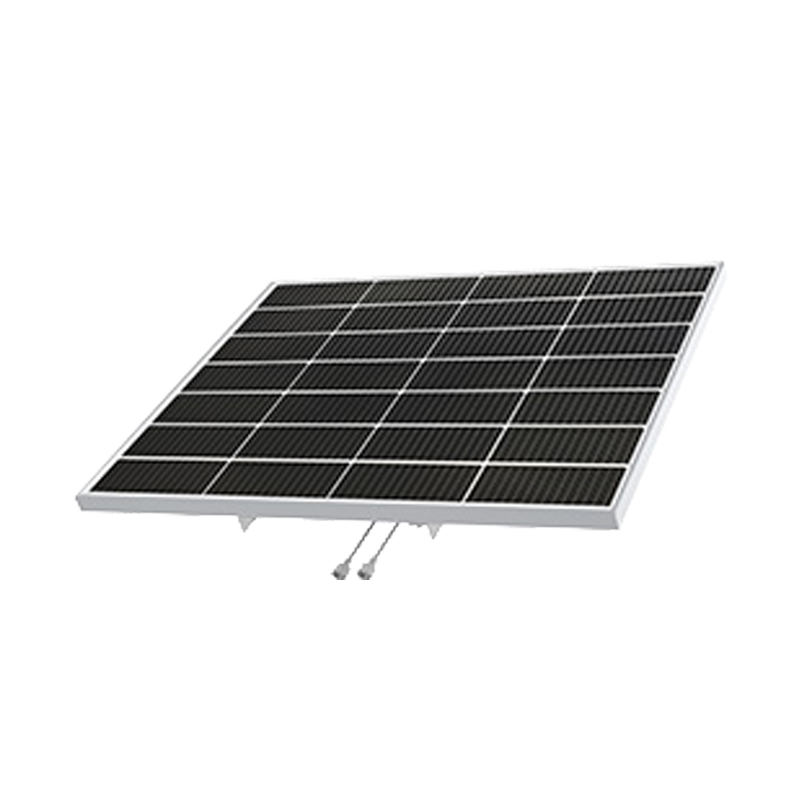

Milesight Address off-grid security challenges with Milesight innovative solar camera. Designed to overcome network and power limitations, this solution leverages 4G connectivity and solar energy to provide a fully wireless system. By eliminating the need for complex wiring and traditional power sources, it cuts down on installation costs, reduces labor, and saves valuable time.
Features
- Battery Type NMC
- Battery Capacity 50AH
- Total Energy 555Wh
- Battery Life 9 days (without data transmission),6 days (with data transmission)
| Details | |
|---|---|
| Product Code | S100B55 |
| Product Name | S100 Solar Power System |
| Solar Panel Modules in Kit | Default: 1 units; Optional: 2 units |
| PV Power | 100W |
| PV Input Voltage | 18V |
| Material | Monocrystalline silicon |
| Battery Type | NMC |
| Battery Capacity | 50AH |
| Total Energy | 555Wh |
| Battery Life | 9 days (without data transmission),6 days (with data transmission) |
| Deep Cycles | ＞1000 |
| Nominal Voltage | 11.1V |
| Output Voltage | 9~12.6V DC |
| Maximum Output Current | 10A |
| Discharge Depth | 95%DOD |
| Battery Heating | Charging current > 2A and lower than -5℃ turns on |
| Protection Type | Overcurrent/ Overvoltage/Short Circuit/ Undervoltage/ Temperature |
| Charging Temperature Range | 0℃~60℃ |
| Discharging Temperature Range | -20℃~65℃ |
| Status Indicator | LED (charging status, battery status, output status) |
| Communication | RS485 |
| Output Method | M12 5-pin Connector |
| Output Line Length | 1.5m |
| Supported Cables | Dual Device Power Splitter Cable, Bridge Data & Power Cable (RS485 & DC Output),Main Power Cable |
| Waterproof | IP66 |
| Humidity Range | 4-100% (no condensation) |
| Cooling Method | Natural Heat Dissipation |
| Hazardous Material Classification | 9 |
| Shell Material | Galvanized Steel + Plastic |
| Fixed Way | Hanging Rod / Wall Mounting |
| Product Dimensions | 765*630*69 mm, 825*690*105 mm (with Package) |
| Weight | 13kg |
| Warranty | 2 years |
| Certificate | UN38.3/MSDS/CE/ROHS |
| Details | |
|---|---|
| Contents | Warranty card, QSG |
| Power Supply | Not included |
