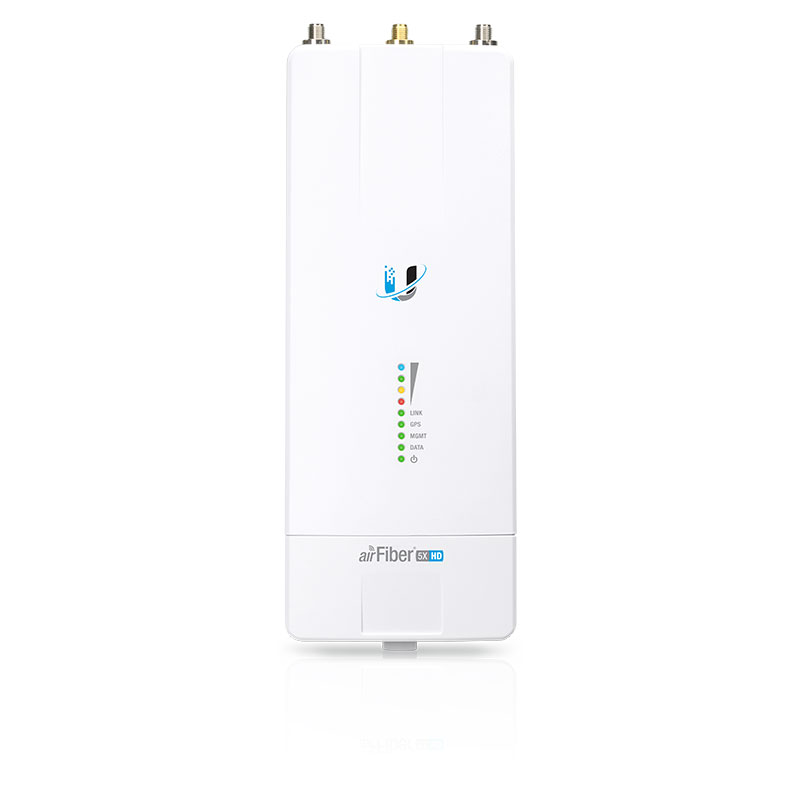

Ubiquiti UISP airFiber 5XHD PTP LTU Backhaul Radio

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Description

Specifications

Resources

Package Contents

Ubiquiti UISP airFiber 5XHD PTP LTU Backhaul Radio. Ubiquiti continues to disrupt the wireless broadband Point to Point market with revolutionary technology at breakthrough pricing by introducing the airFiber® AF-5XHD. Designed for use in the 5 GHz frequency band, the AF-5XHD features the newest radio technology, offering greater channel bandwidths (up to 100 MHz) and more advanced RF components. The AF-5XHD is also compatible with a number of existing Ubiquiti® antennas for the 5 GHz band, including airFiber X antennas and certain RocketDish™ antennas. Pair the AF-5XHD with a compatible Ubiquiti antenna for a complete 5 GHz Point-to-Point (PtP) solution. The AF-5XHD also includes a special IP67 upgrade kit for enhanced protection from dust and water.

Features

Programmable Transmit Power
Programmable Duty Cycle (GPS synchronized frames)
Configurable GPS Synchronization
Split TX and RX Frequency (Future firmware upgrade)
Split TX and RX Channel Bandwidth (Future firmware upgrade)
Adaptive Modulation up to 1024QAM
Dual Redundant Gigabit Ethernet Ports with PoE
OFDM and OFDMA Support
Bluetooth Wireless Configuration
AlignLock™ Antenna Aiming Guard
User-Configurable Interference Mitigation
Redundant Images for Fail-Safe Configuration
Persistent Spectrum Analysis with Dedicated RX
Wide Voltage Range, Enhanced Surge Protection

Details
Manufacturer's Code	AF-5XHD
Output Power	29 dBm
Frequency Range	4.8 GHz - 6.2 GHz (Dependent on Regulatory Region)
Interfaces	(1) 10/100/1000 Ethernet Port (DATA), (1) 10/100/1000 Ethernet Port (Management), (2) RP-SMA Weatherproof (CH0, CH1), (1) SMA Weatherproof (GPS)
Temperature Range	-30 to 75° C
PoE In	Passive 24-50VDC
Max Power consumption	6-12W
Pole Diameter	30-50mm
Dimensions	224 x 82 x 48 mm
IP Rating	IP67
