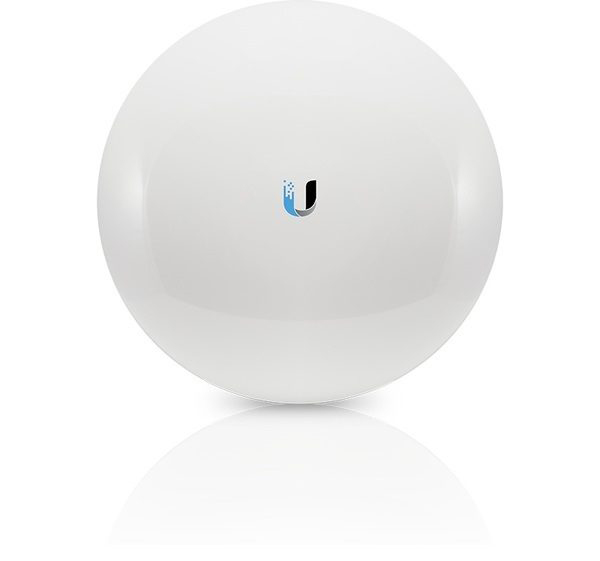

Ubiquiti NanoBeam 2AC 2.4GHz 500mW CPE/Bridge with 13dBi Antenna

$214.00 +GST
Login for your price
50+ In Stock
SKU: NBE-2AC-13
Ubiquiti NanoBeam 2AC 2.4GHz 500mW radio with integrated 13dBi Antenna for CPE and PTP
Warranty
Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*
Description
Specifications
Resources
Package Contents
Ubiquiti NanoBeam 2AC 2.4GHz 500mW Radio with 13dBi Antenna. Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the NanoBeam® 2AC with dedicated Wi-Fi management. The NanoBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 2AC gets maximum gain out of the smallest footprint. Providing high performance and an innovative form factor, the NanoBeam 2AC is versatile and cost-effective to deploy.
Details
Manufacturer's CodeNBE-2AC-13
Output Power27dBm
Operating ModesPtP, PtMP
Frequency Range2412 - 2472, 5150 - 5250 (Management Radio)
Interfaces(1) 10/100/1000 Ethernet Port
PoE InYes, 24V
Operating SystemUbiquiti airOS
Antenna gain dBi13dBi
Max Power consumption7.5W
Number of chains2
PolarisationDual Linear
Pole Diameter30-50mm
Dimensions189 x 189 x 125 mm
IP RatingIP54
Details
Power Supply3 Pin Clover Lead
Power Injector24V POE Injector
Pole MountYes, Hose Clamp or Cable Tie
Wall MountOptional - Purchased Separately
Window MountOptional - Purchased Separately
WarrantyStandard 12 Month RTB
2.4GHz
1Gbps
PoE (non standard)
Wi-Fi 5 , Proprietary
