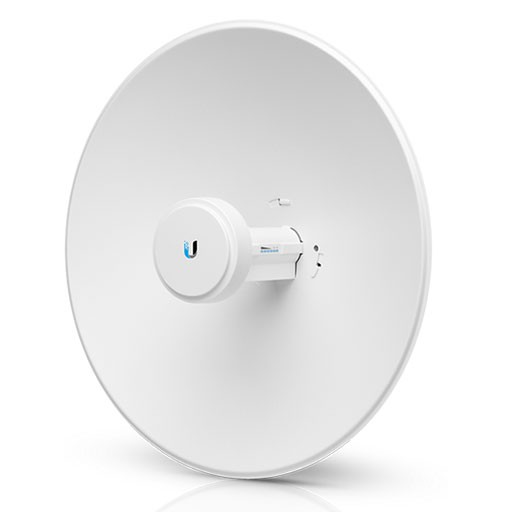

Ubiquiti PowerBeam 2AC 2.4GHz High Speed 400mm Point to Point / CPE Wireless Radio

Same day dispatch for orders placed before 3pm (NZDT), Free shipping on all orders $1000+GST*

Description

Description

Specifications

Resources

Package Contents

The Ubiquiti PowerBeam 2.4GHz 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative design, the PowerBeam 2AC is versatile and cost-effective to deploy.

Features

Dedicated 5GHz WiFi Management Radio
High-performance airMAX ac CPE
airMAX ac Protocol Support
Long-Range Point-to-Point (PtP) Link Mode
Selectable Channel Widths, PtP: 10/20/40 MHz, PtMP: 10/20/40 MHz
Automatic Channel Selection
Transmit Power Control: Automatic/Manual
Automatic Distance Selection (ACK Timing)
Strongest WPA2 Security
airMagic® Channel Selection Tool
Dynamic Configuration Changes
Optimization for Mobile Devices
Detailed Device Statistics
Comprehensive Array of Diagnostic Tools, Including RF Diagnostics and airView® Spectrum Analyzer

Details
Manufacturer's Code	PBE-2AC-400
Output Power	27dBm
Operating Modes	PtP / PtMP
Frequency Range	2412 - 2472 MHz; 5150-5250 MHz (Management Radio)
Interfaces	(1) 10/100/1000 Ethernet Port
Temperature Range	-40 to 70° C
PoE In	Yes, 22-26VDC, Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating System	Ubiquiti airOS
Antenna gain dBi	18dBi
Max Power consumption	7.5W
Polarisation	Dual Linear
Pole Diameter	30-50mm
Dimensions	420 x 420 x 289 mm
IP Rating	IP54
