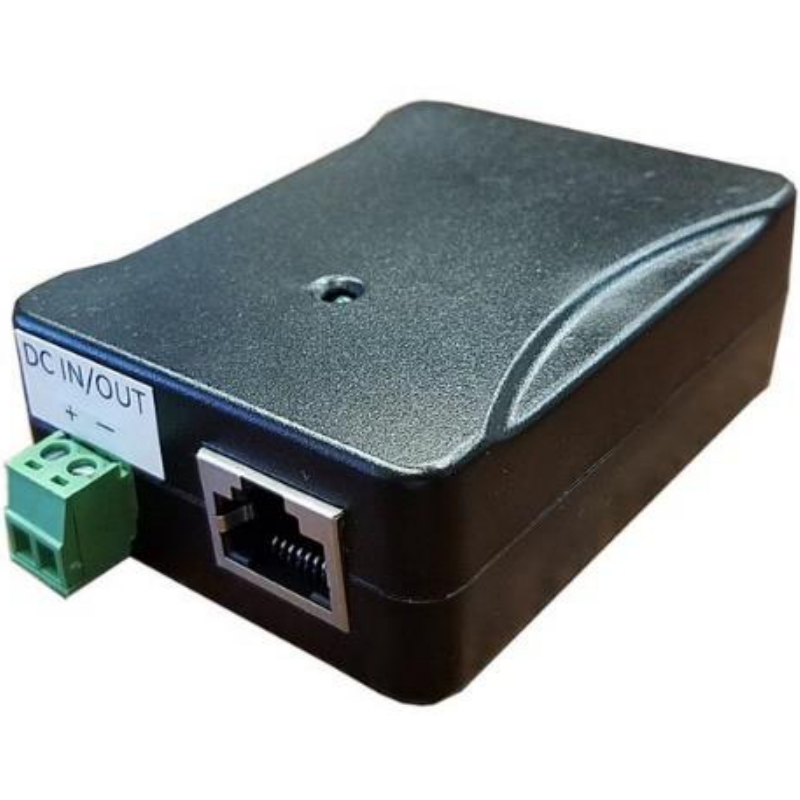

Tycon Power Systems POE-INJ-1000-WTs Gigabit 8 Wire Passive PoE Injector. The POE-INJ-1000-WTs are shielded passive power over Ethernet Inserters and Splitters that are compatible with data speeds up to 1 gigabit. The DC connector is a removeable wire terminal type power connector. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins (4 Pair) This allows for transport of up to 130W over a single CAT5/6 wire up to 100m
Features
- High Power Shielded Design (uses all 4 pairs)
- 10/100/1000Mb Compatible
- Removeable Wire Terminal Connector
- 5VDC to 58VDC Power over Ethernet
- Power On LED indicator
- Security Applications
- HD PTZ Cameras
| Details | |
|---|---|
| Product Code | POE-INJ-1000-WTs |
| DC Input Voltage Range | 5V to 58VDC |
| Data Speeds | 10/100/1000Mb |
| Maximum POE Current | 2.25A, 130W Max |
| DC Connector | Removeable Wire Terminal Connector – Maximum Wire Size 14AWG |
| RJ45 PoE Pinout | 1,2,3,6 (V+) 4,5,7,8 (V-) |
| Operating Temperature | -40°F to 185°F (-40°C to +85°C) |
| Operating Humidity Size | 0 to 99% RH |
| Size | 2.8 x 2.1 x 0.95” (71x53x24mm) |
| Weight | 2.3oz (65g) |
| Details | |
|---|---|
| Included | 1 x Passive PoE injector with Wire Terminal |
RJ45
PoE (non standard)
