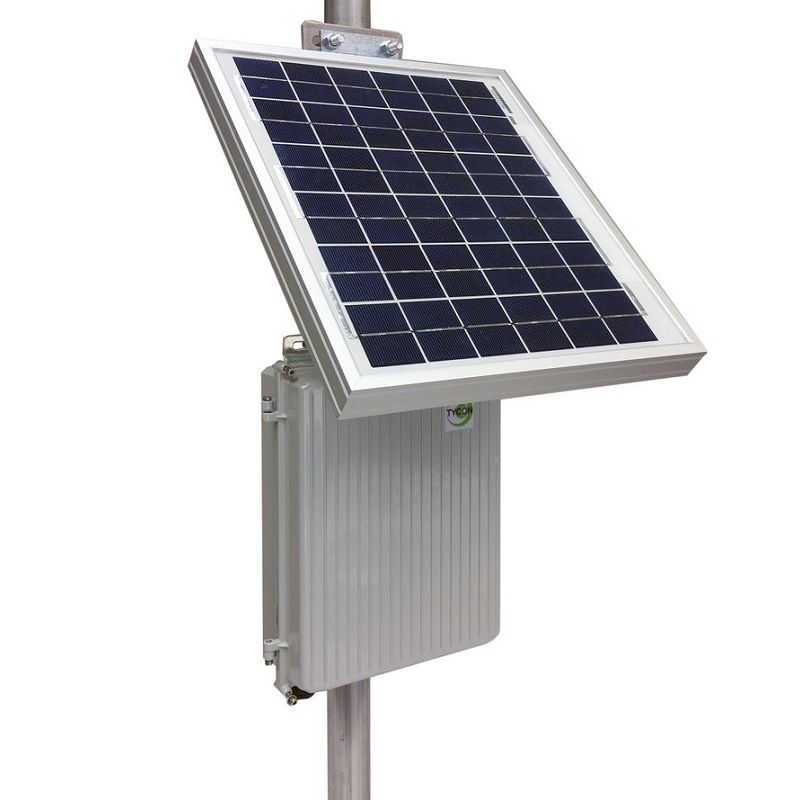

Tycon Solar RemotePro2.5W Remote Power System. 9Ah Battery. 15W Solar. 12V 20A PWM Controller. Die Cast Aluminum Enclosure.
The RPDC RemotePro® series outdoor power systems are designed for applications that require a primary off-grid power source to run various electronics.
The die cast aluminum enclosures are hinged and gasket sealed. They can be mounted to a pole or wall with the included mounting bracket system.
The high quality solar panels have a 25year power output guarantee. They can be mounted to a pole or to a wall with the included bracket kit.
Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. Enclosures are vented to prevent residual buildup of hydrogen gas.
Batteries are an Absorbed Glass Matt (AGM) type which have good all temperature performance.
The RPDC RemotePro® series outdoor power systems are designed for applications that require a primary off-grid power source to run various electronics.
The die cast aluminum enclosures are hinged and gasket sealed. They can be mounted to a pole or wall with the included mounting bracket system.
The high quality solar panels have a 25year power output guarantee. They can be mounted to a pole or to a wall with the included bracket kit.
Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. Enclosures are vented to prevent residual buildup of hydrogen gas.
Batteries are an Absorbed Glass Matt (AGM) type which have good all temperature performance.
Features
- Complete Remote Power Solution for Off-Grid operation
- Weatherproof, UV resistant, outdoor enclosures
- Enclosures can be Wall or Pole Mounted
- High Performance Valve Regulated Sealed Lead Acid Batteries
- Advanced battery charge controller protects against overcharge and over discharge
| Details | |
|---|---|
| Manufacturer's Product Code | RPDC12-9-15 |
| Rated Power Generation (6hrs peak sun) | 2.5W |
| Reserve Time @ Rated Power | 21hrs |
| POE Output Voltage (DC) | No POE Out |
| Secondary Volts Out (DC) | 12V 20A |
| Battery Capacity (Amp Hrs) | 8.5Ah |
| Battery Voltage (DC) | 12V |
| Battery Type | Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
| Battery Life | 5 Years |
| Controller Type | PWM |
| Overcharge Protection | 14.4V |
| Over-discharge protection | 11.0V |
| Over-discharge recovery volts | 12.0V |
| Controller Self Consumption | <0.3W |
| Enclosure Type | Die Cast Aluminum |
| Enclosure External Size | 11 x 8.5 x 3.5” (279x216x89mm) |
| Enclosure Internal Size | 10 x 7.75 x 3” (254x197x76mm) |
| Space available for Customer Electronics | 7.75 x 5 x 1.25” (197x127x32mm) |
| Solar Panel Dims | 14”X12” (355 x 305mm) |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| System Weight (no batteries) | 10lb (4.5kg) |
| Battery Weight | 5.5lb (2.5kg) |
| Wind Speed Rating | 110MPH (49m/s) |
| Details | |
|---|---|
| Battery | 9AH Battery |
| Solar | 15W Solar Panel |
| Controller | 12V 20A PWM Controller |
| Enclosure | Die Cast Aluminum Enclosure |
